Wheel Speed Sensor - Rear: Installation
CAUTION:
Failure to install speed sensor properly may result in contact with moving parts or an over extension of wires causing an open circuit. Be sure that sensor harnesses are installed, routed, and clipped properly.

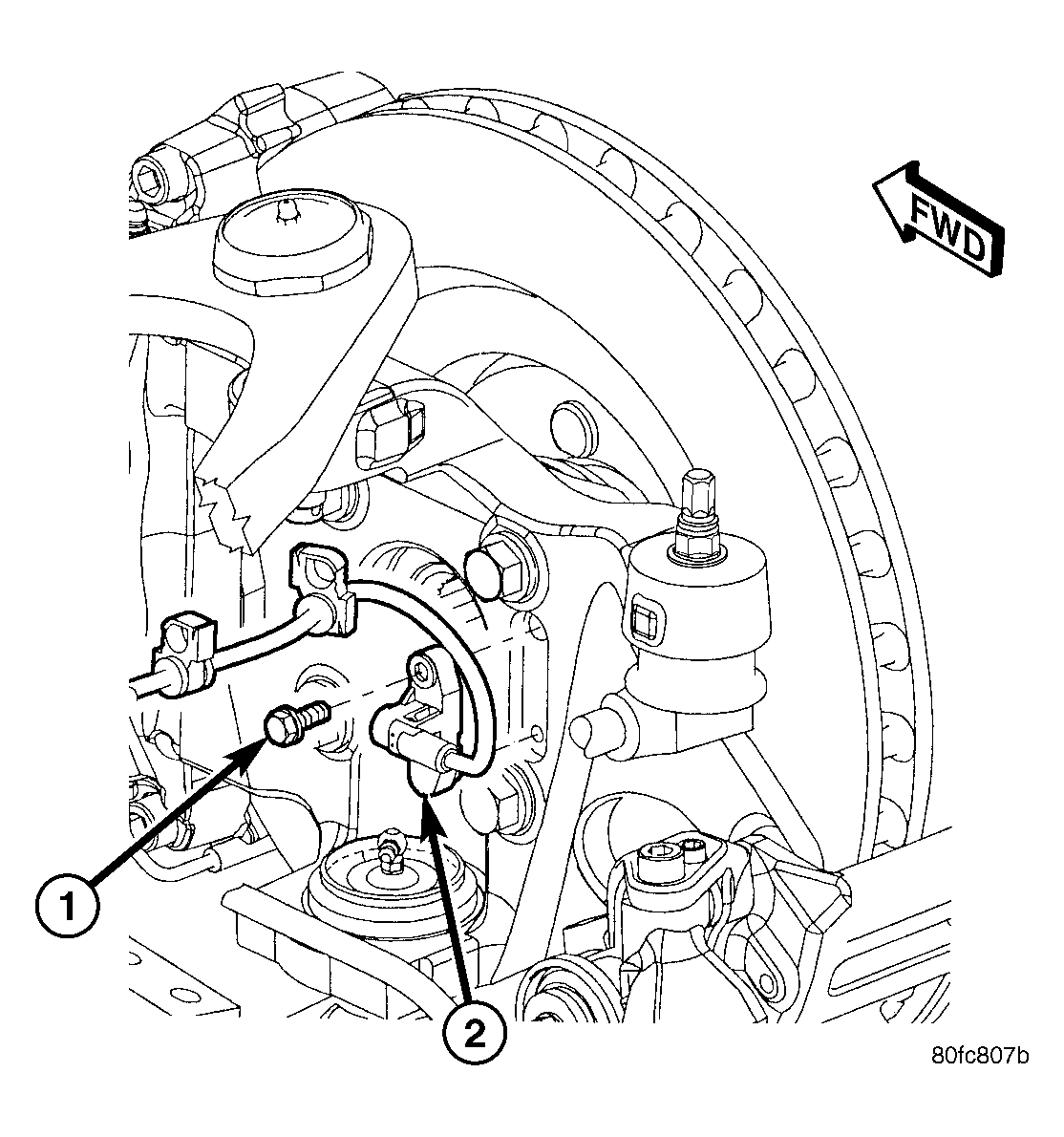

- Install wheel speed sensor head in knuckle and install mounting bolt. See Figure. Tighten mounting bolt 11 N.m (100 in. lbs.) torque.
- Route sensor harness along parking brake cable and install routing clips. Close clips.
- Push sensor connector fastener clip into mounting hole in frame rail.
- Connect vehicle wiring harness to sensor connector.
- Install tire and wheel assembly (Refer to TIRES/WHEELS - INSTALLATION) . Progressively tighten the wheel mounting nuts in the proper sequence to 122 N.m (90 ft. lbs.) torque.
- Lower vehicle.
- Road test vehicle to ensure proper operation of base brakes and ABS.
