Transmission Temperature Sensor

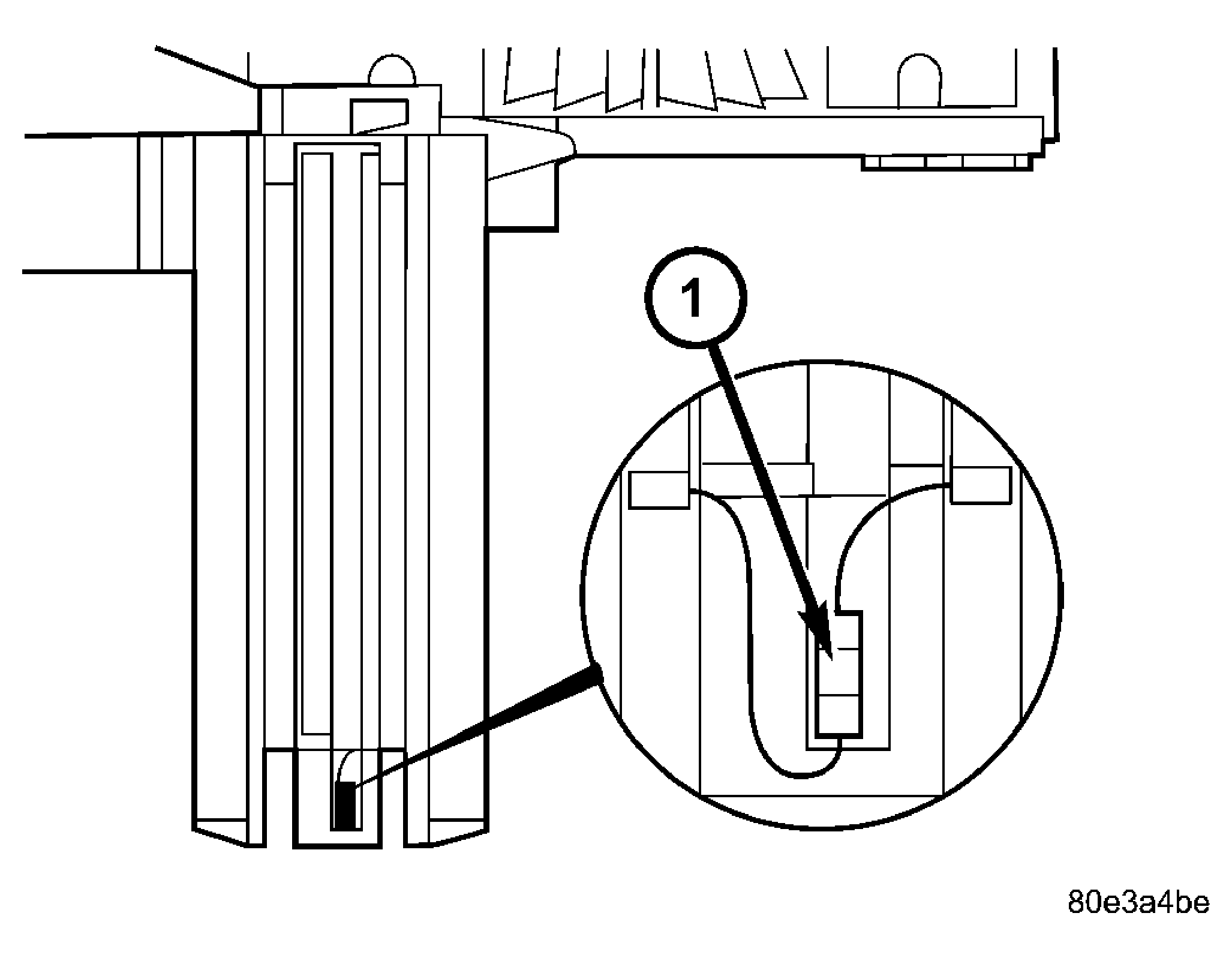

Fig 1: Transmission Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

The transmission oil temperature sensor (1) is located in the shell of the electric valve control unit and is fixed to the conductor tracks. See Fig 1.

Its purpose is to measure the temperature of the transmission oil and pass the temperature to the TCM as an input signal. It is a temperature-dependent resistor (PTC).
