Gearshift Cable: Installation

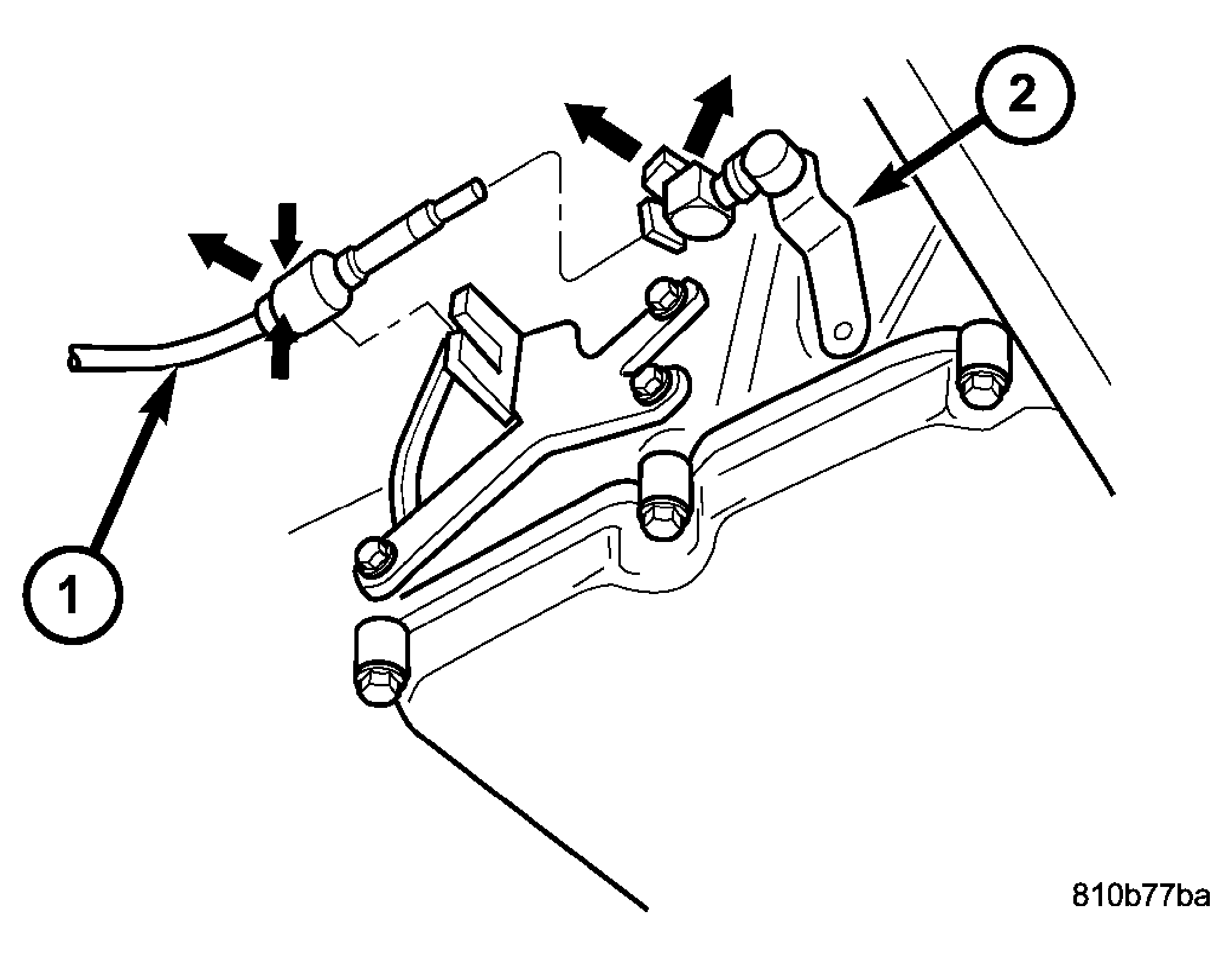

Fig 1: Install Shift Cable Onto Transmission

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHIFT CABLE

2 - TRANSMISSION SHIFT LEVER

Pass the shift cable through the opening in the dash panel and seat the shift cable grommet into the hole.
Install the shift cable (1) to the transmission. See Fig 1.
- Push shift cable onto the transmission shift lever (2) ball socket.
- Latch ball socket latch of cable.
- Clip shift cable retainer into retainer bracket.
Lower vehicle.
Install the transmission shift cable onto the ball knob at the SLA.

Fig 2: Install Bottom Section Of Center Instrument Panel
Courtesy of DAIMLERCHRYSLER CORP.

1 - SCREW

2 - BOTTOM CENTER PART OF INSTRUMENT PANEL

Install the bottom section (2) of the center section of instrument panel. See Fig 2.

Fig 3: Install Top Section Of Center Instrument Panel

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHIFT LEVER ASSEMBLY FRAME TRIM

2 - STORAGE COMPARTMENT

3 - TOP CENTER PART OF INSTRUMENT PANEL

4 - SCREW

5 - PLUG CONNECTIONS

6 - ASHTRAY

Install the top section (3) of the center section of instrument panel. See Fig 3.
Verify repair.
