ELECTROHYDRAULIC Control Unit: Installation

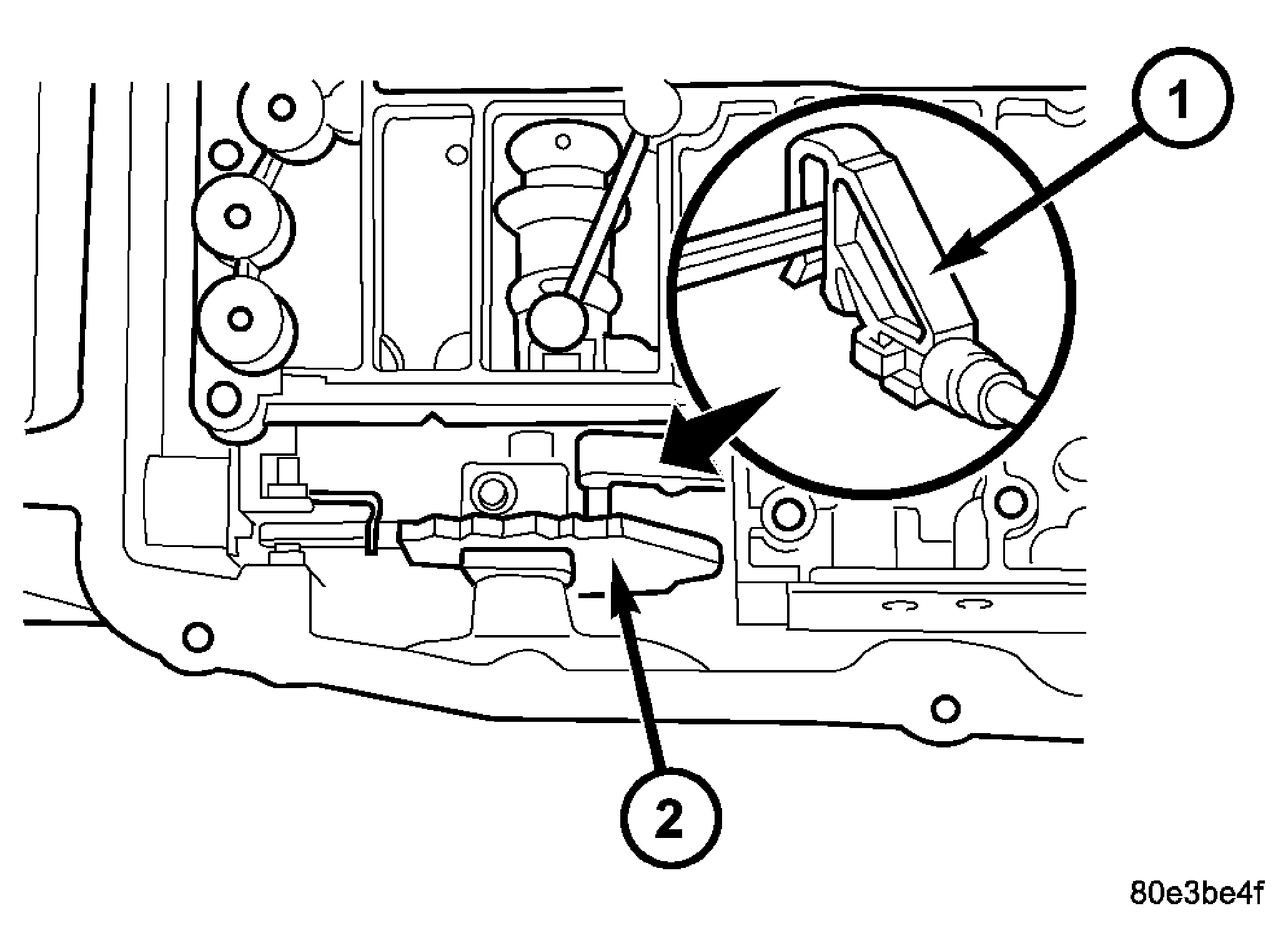

| 1 - SELECTOR VALVE |
| 2 - DETENT PLATE |
- Position the electrohydraulic unit in the transmission housing.
- Insert selector valve (1) in driver of detent plate (2). When installing the electrohydraulic control module in the transmission housing, the plastic part of the selector valve (1) must engage in the driver of the detent plate (2). See Fig 1.
1 - HEAT SHIELD 2 - ELECTROHYDRAULIC UNIT 3 - BOLT 4 - OIL FILTER 5 - OIL PAN 6 - CLAMPING ELEMENT 7 - BOLT 8 - DRAIN PLUG 9 - DRAIN PLUG GASKET 10 - 13-PIN PLUG CONNECTOR 11 - BOLT 12 - ADAPTER PLUG - Install the Torx® socket bolts (3) and torque to 8 N.m (71 in. lbs.). See Fig 2.
- Install a new oil filter (4). See Fig 2.
- Install oil pan (5) and torque the oil pan bolts to 8 N.m (71 in. lbs.). See Fig 2.
- Install the oil drain plug (8) with a new drain plug gasket (9). Torque the drain plug to 20 N.m (177 in. lbs.). See Fig 2.
- Install the adapter plug (12) into the transmission housing and tighten the bolt (11) to 2.5 N.m (22 in. lbs.). See Fig 2.
1 - PLUG CONNECTOR 2 - GUIDE BUSHING - Check O-ring on plug connector (1), and replace if necessary. See Fig 3.
- Install the plug connector (1) into the adapter plug (2). Turn bayonet lock of adapter plug (2) clockwise to connect plug connector (1).

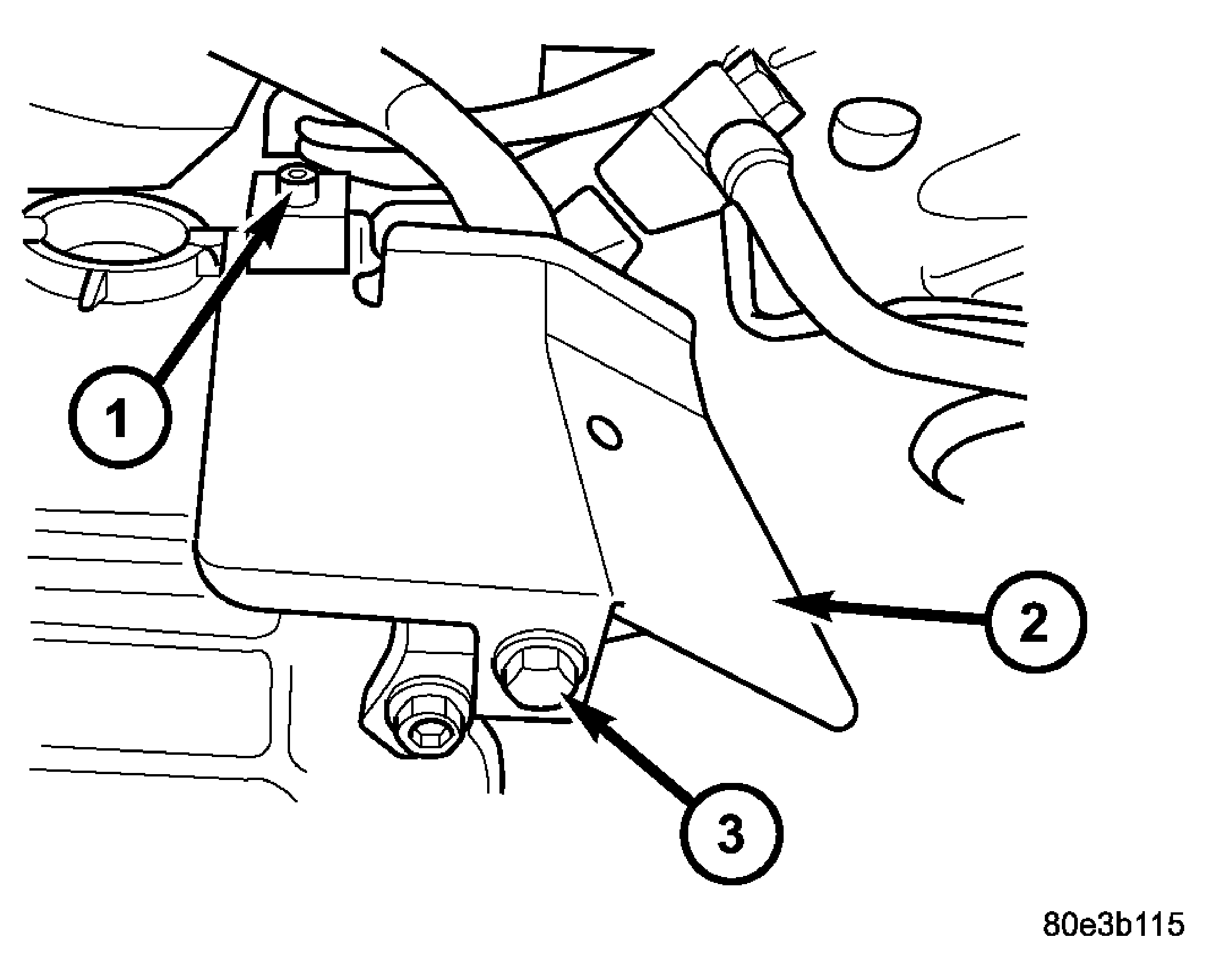

1 - SCREW 2 - HEAT SHIELD 3 - BOLT - Position the heat shield (2) onto the transmission housing and install the screw (1) and bolt (3) to hold the shield in place. See Fig 4.
- Fill the transmission with the correct oil using the standard procedure. (Refer to LUBRICATION & MAINTENANCE/FLUID TYPES - DESCRIPTION) and (Refer to TRANSMISSION/AUTOMATIC - NAG1/FLUID AND FILTER - STANDARD PROCEDURE - TRANSMISSION FILL) .
