Stabilizer Bar: Installation

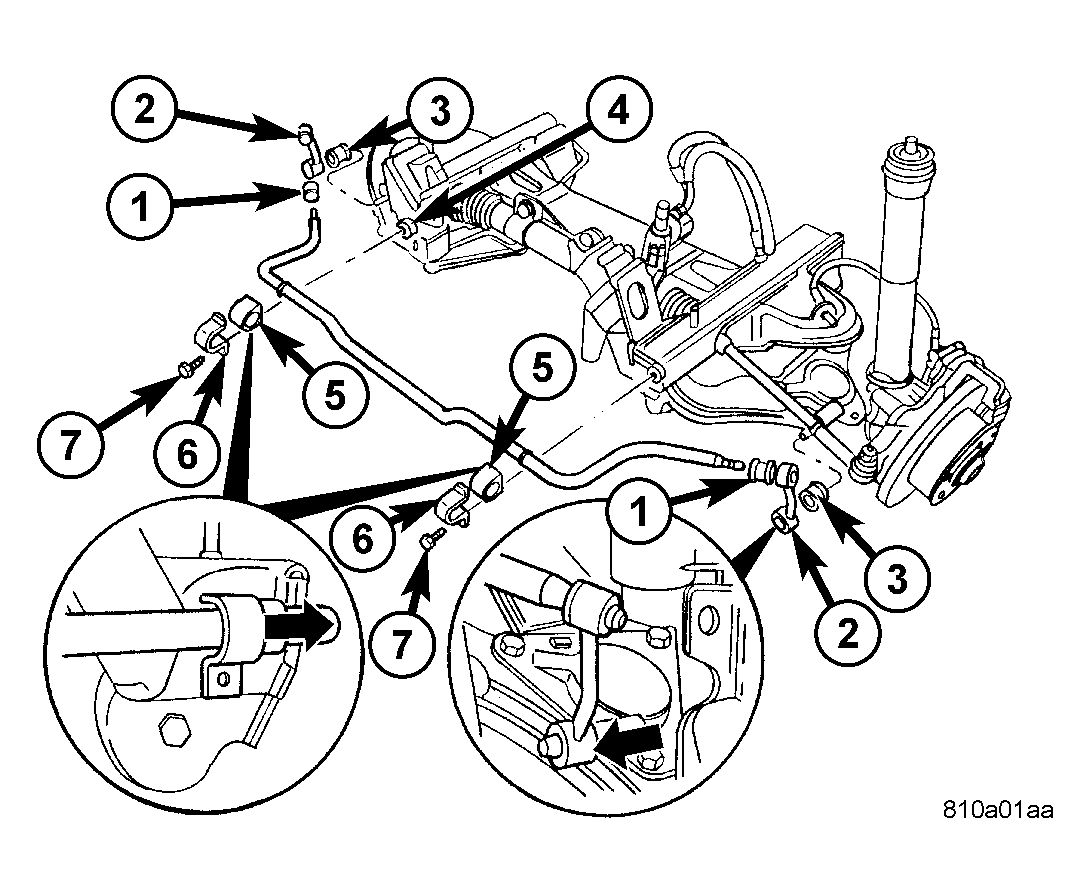

  1. Install the stabilizer links to the stabilizer bar. See Figure.
  2. Install the stabilizer to the front axle. See Figure.
  3. Install the stabilizer bar clamp and bolts. See Figure. Tighten the bolts to 30 N.m (22 ft. lbs.).
  4. Lower the vehicle.
