Sentry Key Remote Entry Module (SKREEM)

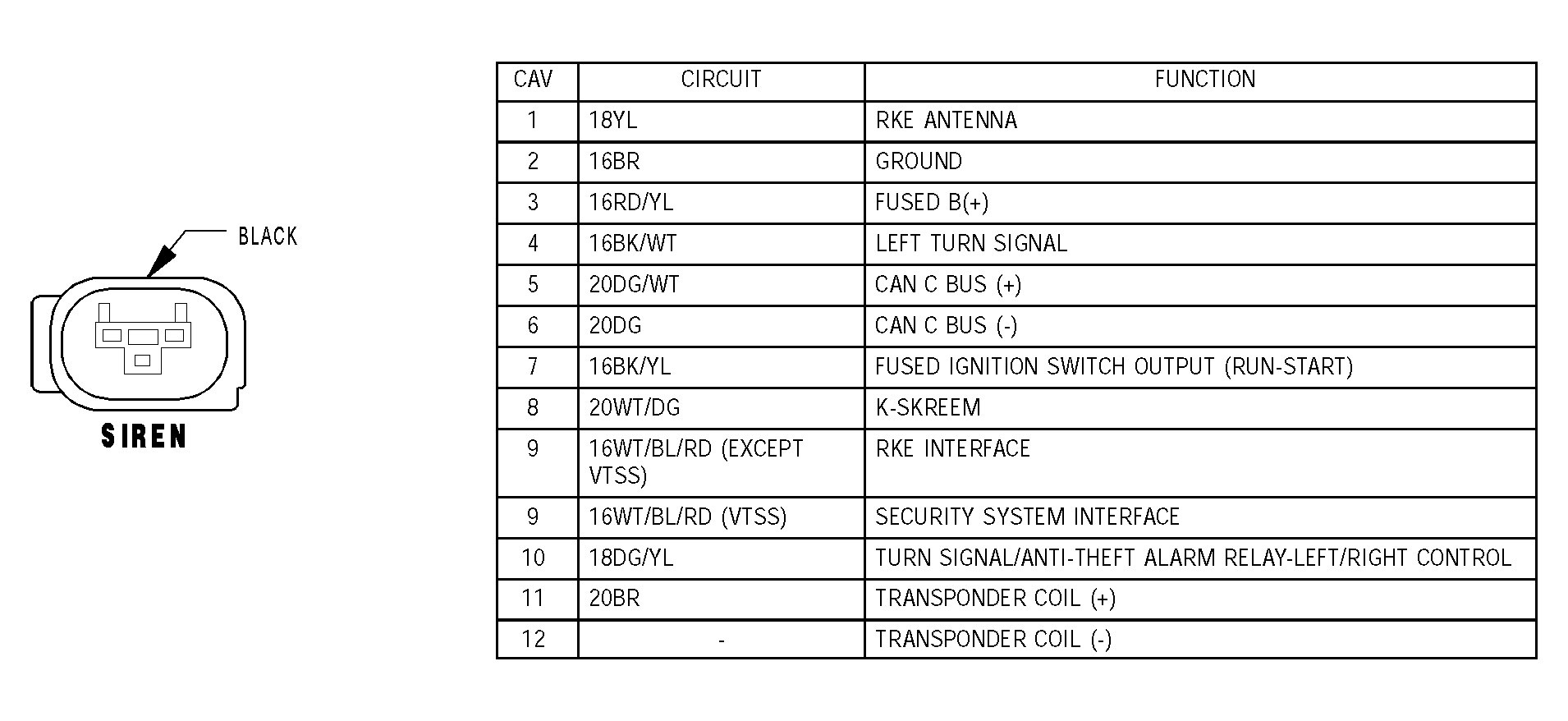

Fig 1: Identifying Sentry Key Remote Entry Module (SKREEM) Connector Pinouts

G04536656

Courtesy of DAIMLERCHRYSLER CORP.
