Fuel Injection And Fuel Temperature Sensor Location

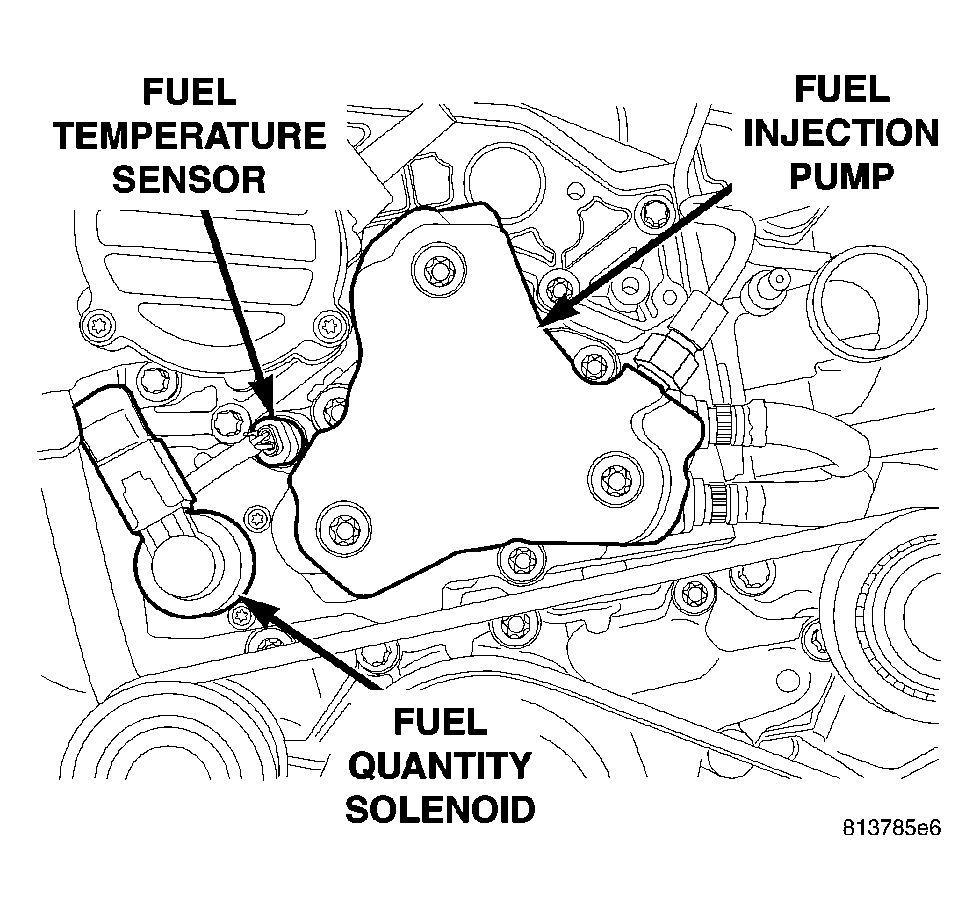

Fig 1: Identifying Fuel Injection And Fuel Temperature Sensor Component Location

G04536598

Courtesy of DAIMLERCHRYSLER CORP.
