 Courtesy of DAIMLERCHRYSLER CORP.
|

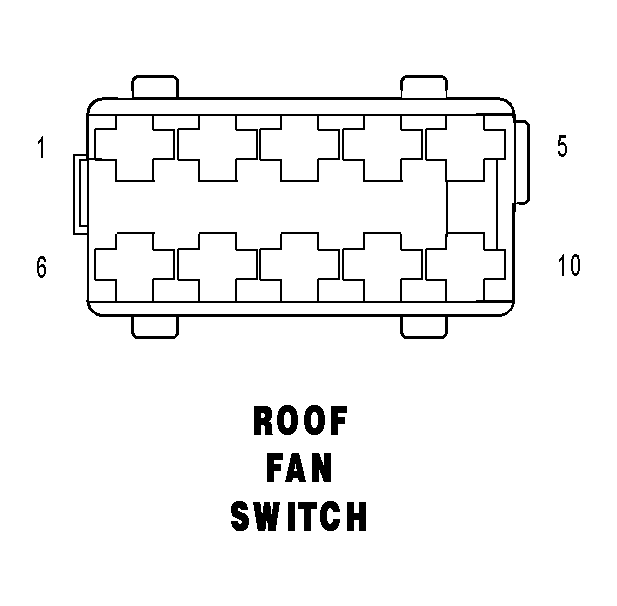

| CAV |
CIRCUIT |
FUNCTION |
| 1 |
16GY/DG/RD |
LAMP DRIVER |
| 2 |
- |
- |
| 3 |
16BK/BL/WT |
FUSED OPTIONAL EQUIPMENT RELAY OUTPUT |
| 4 |
16WT |
MOTOR (+/-) |
| 5 |
16BR |
GROUND |
| 6 |
16BR |
GROUND |
| 7 |
16BK |
MOTOR (+/-) |
| 8 |
16BK/BL/WT |
FUSED OPTIONAL EQUIPMENT RELAY OUTPUT |
| 9 |
- |
- |
| 10 |
16BR |
GROUND |
