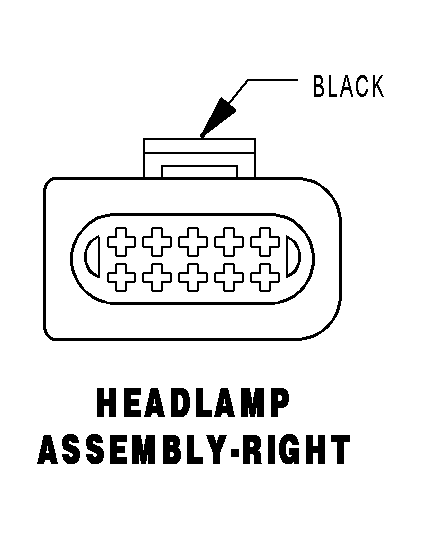

Right Headlamp Assembly Connector End View
HEADLAMP ASSEMBLY-RIGHT - BLACK
| CAV | CIRCUIT | FUNCTION |
| 1 | 16GY/DG/RD | LAMP DRIVER |
| 2 | 16YL/WT | FOG LAMP RELAY OUTPUT |
| 3 | 16BR | GROUND |
| 4 | 16BR | GROUND |
| 5 | 16VT/WT | HEADLAMP ADJUST SWITCH OUTPUT |
| 6 | 16BK/DG | RIGHT TURN SIGNAL |
| 7 | 18YL/DG (DRL) | DAYTIME RUNNING LAMP RELAY-RIGHT SIDE OUTPUT |
| 7 | 18YL (EXCEPT DRL) | HEADLAMP SWITCH OUTPUT |
| 8 | 16BR | GROUND |
| 9 | 16WT | FUSED HIGH BEAM SWITCH OUTPUT |
| 10 | 16GY/RD | RIGHT LAMP RELAY OUTPUT |
