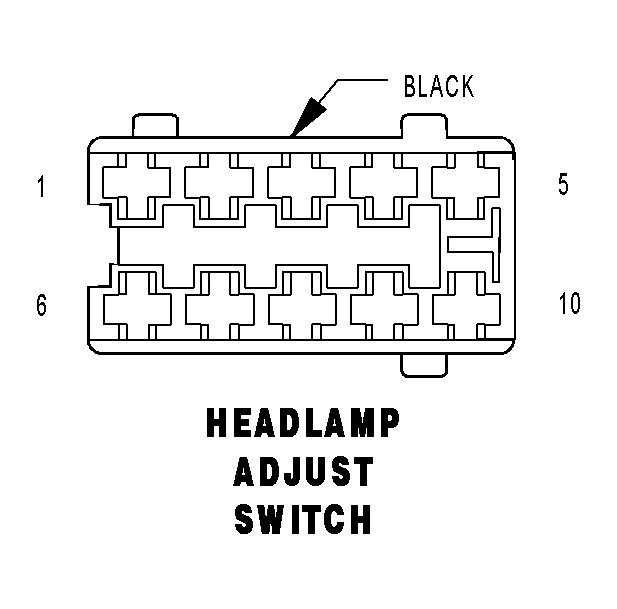

Headlamp Adjust Switch Connector End View

HEADLAMP ADJUST SWITCH - BLACK

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	16BR	GROUND
4	-	-
5	16VT/WT	HEADLAMP ADJUST SWITCH OUTPUT
6	-	-
7	-	-
8	-	-
9	16GY/DG/RD	LAMP DRIVER
10	-	-
