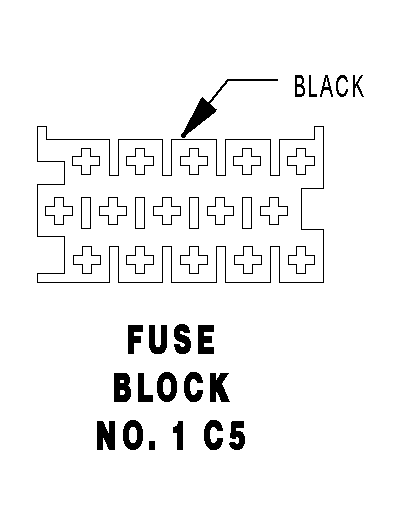

Fuse Block 1 Connector End View (C5)
FUSE BLOCK NO. 1 C5 - BLACK
| CAV | CIRCUIT | FUNCTION |
| 1 | 16BK/BL/WT | FUSED IGNITION SWITCH (RUN-START) |
| 2 | 12BK/BL | FUSED ENGINE CONTROL RELAY OUTPUT |
| 3 | 18YL | FUSED HEADLAMP SWITCH OUTPUT |
| 4 | 16GY/BK | LEFT LAMP RELAY OUTPUT |
| 5 | 16BK/DG | RIGHT TURN SIGNAL |
| 6 | 16GY/RD | RIGHT LAMP RELAY OUTPUT |
| 7 | 16GY/DG | LAMP DRIVER |
| 8 | 16BK/WT | LEFT TURN SIGNAL |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | 16YL | FUSED HEADLAMP SWITCH OUTPUT |
| 14 | 16BK/VT/RD | WASHER ON/OFF SWITCH OUTPUT |
| 15 | 18YL/BL | ENGINE CONTROL RELAY SIGNAL |
