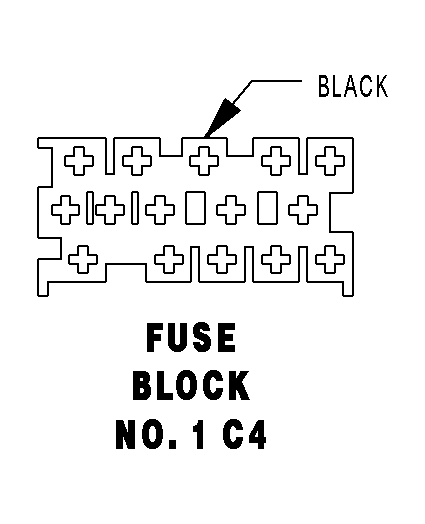

Fuse Block 1 Connector End View (C4)
FUSE BLOCK NO. 1 C4 - BLACK
| CAV | CIRCUIT | FUNCTION |
| 1 | 16RD/BL | FUSED B(+) |
| 2 | 14RD/BK (OBD) | FUSED B(+) |
| 3 | - | - |
| 4 | 16BK/RD | ENGINE CONTROL RELAY OUTPUT |
| 5 | 16WT | FUSED HIGH BEAM SWITCH OUTPUT |
| 6 | - | - |
| 7 | 16BK/YL | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 8 | 16BK/YL/WT | FOG LAMP RELAY SIGNAL |
| 9 | - | - |
| 10 | 16WT | FUSED HIGH BEAM SWITCH OUTPUT |
| 11 | 16RD/YL | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 12 | 16BR/BK | WIPER MOTOR CONTROL |
| 13 | - | - |
| 14 | 16WT/BL/RD | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 15 | - | - |
