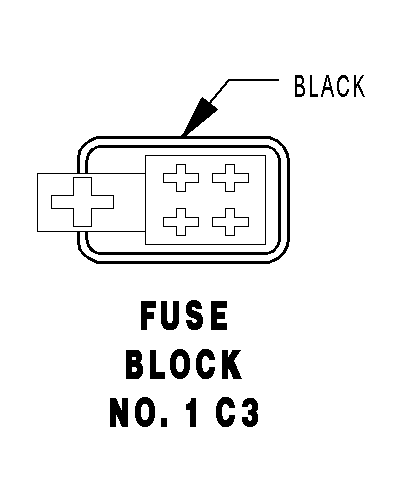

Fuse Block 1 Connector End View (C3)

FUSE BLOCK NO. 1 C3 - BLACK

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	16BK/VT	FUSED IGNITION SWITCH OUTPUT (RUN-START)
3	12VT	IGNITION SWITCH OUTPUT (START)
4	-	-
5	12RD	FUSED B(+)
