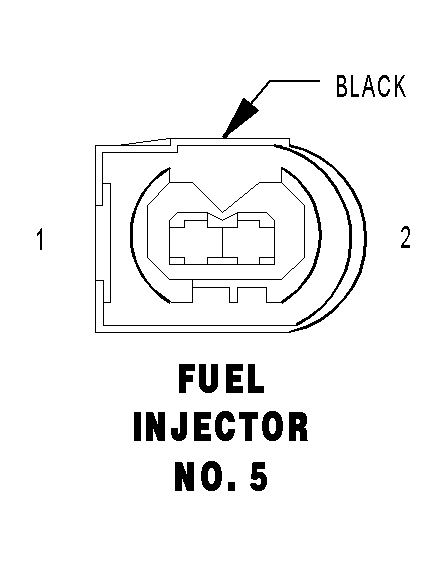

Fuel Injector 5 Connector End View
FUEL INJECTOR NO. 5 - BLACK
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
14BK/DG (EXCEPT OBD) |
FUEL INJECTOR NO. 5 CONTROL |
| 1 |
16BK/YL (OBD) |
FUEL INJECTOR NO. 5 LOW-SIDE CONTROL |
| 2 |
14BL (EXCEPT OBD) |
COMMON INJECTOR DRIVER NO. 2 |
| 2 |
16BK/WT (OBD) |
FUEL INJECTOR NO. 5 HIGH-SIDE CONTROL |
