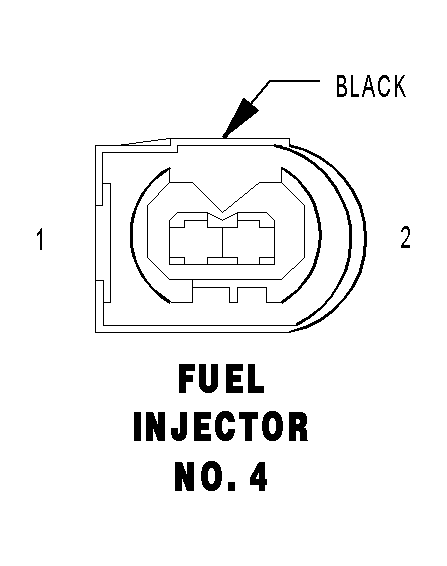

Fuel Injector 4 Connector End View
FUEL INJECTOR NO. 4 - BLACK
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
14BK/YL (EXCEPT OBD) |
FUEL INJECTOR NO. 4 CONTROL |
| 1 |
16BK/VT (OBD) |
FUEL INJECTOR NO. 4 LOW-SIDE CONTROL |
| 2 |
14BK (EXCEPT OBD) |
COMMON INJECTOR DRIVER NO. 1 |
| 2 |
16BL/WT (OBD) |
FUEL INJECTOR NO. 4 HIGH-SIDE CONTROL |
