Front Blower Motor Connector End View

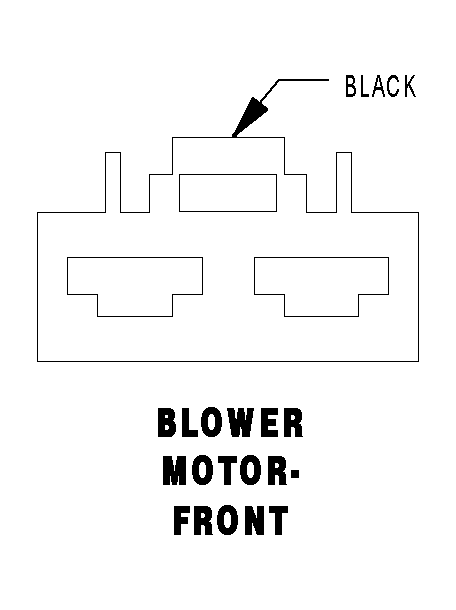

BLOWER MOTOR-FRONT - BLACK

GCVA580023Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 12RD/BL BLOWER MOTOR (+)
2 12BK GROUND
