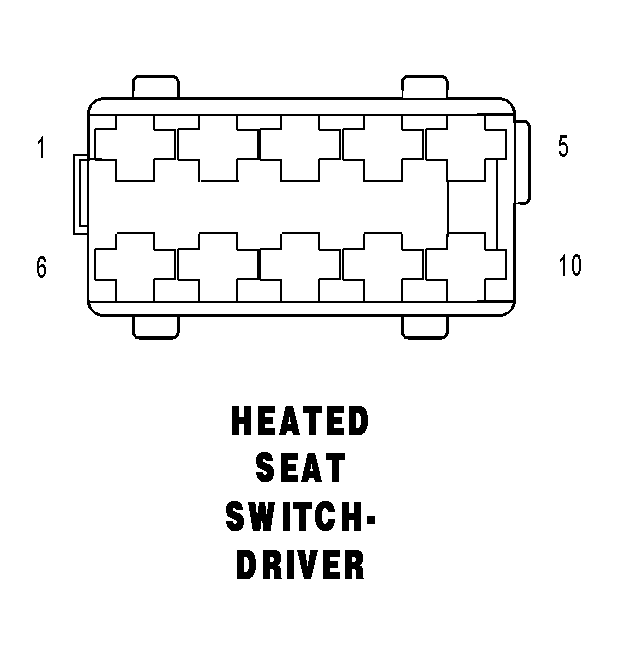

Driver Heated Seat Switch Connector End View
HEATED SEAT SWITCH-DRIVER
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
16GY/DG/RD |
LAMP DRIVER |
| 2 |
- |
- |
| 3 |
16VT/YL |
FUSED OPTIONAL EQUIPMENT RELAY OUTPUT |
| 4 |
16VT/RD |
S366 COMMON CIRCUIT |
| 5 |
16BR |
GROUND |
| 6 |
- |
- |
| 7 |
16VT/DG |
HEATED SEAT SWITCH-DRIVER LOW OUTPUT |
| 8 |
16VT/YL |
FUSED OPTIONAL EQUIPMENT RELAY OUTPUT |
| 9 |
- |
- |
| 10 |
16BR |
GROUND |
