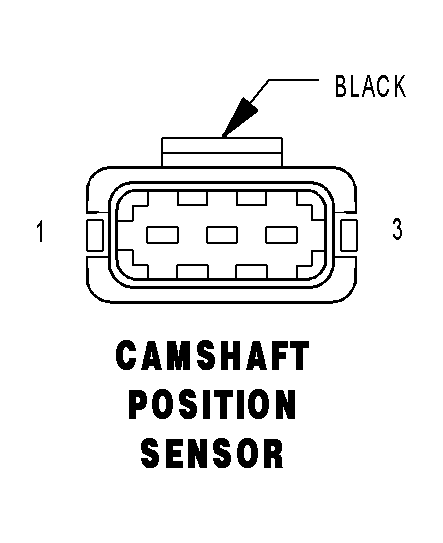

Camshaft Position Sensor Connector End View
CAMSHAFT POSITION SENSOR - BLACK
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR/DG |
CAMSHAFT POSITION SENSOR GROUND |
| 2 |
20YL/GY |
CAMSHAFT POSITION SENSOR SIGNAL |
| 3 |
18RD/BL (EXCEPT OBD) |
CAMSHAFT POSITION SENSOR 12 VOLT SUPPLY |
| 3 |
20RD/BL (OBD) |
CAMSHAFT POSITION SENSOR 5 VOLT SUPPLY |
