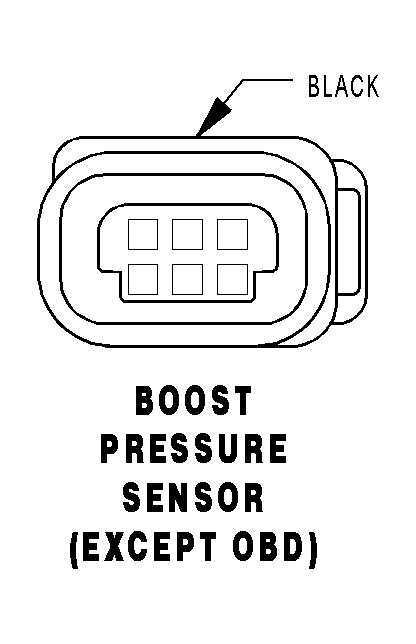

Boost Pressure Sensor (Except OBD) Connector End View
BOOST PRESSURE SENSOR (EXCEPT OBD) - BLACK
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
18BR/WT |
BOOST PRESSURE SENSOR GROUND |
| 2 |
18WT/DG |
BOOST PRESSURE SENSOR SIGNAL |
| 3 |
18WT/RD |
BOOST PRESSURE SENSOR 5 VOLT SUPPLY |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
- |
- |
