Front Wheel Speed Sensor: Installation

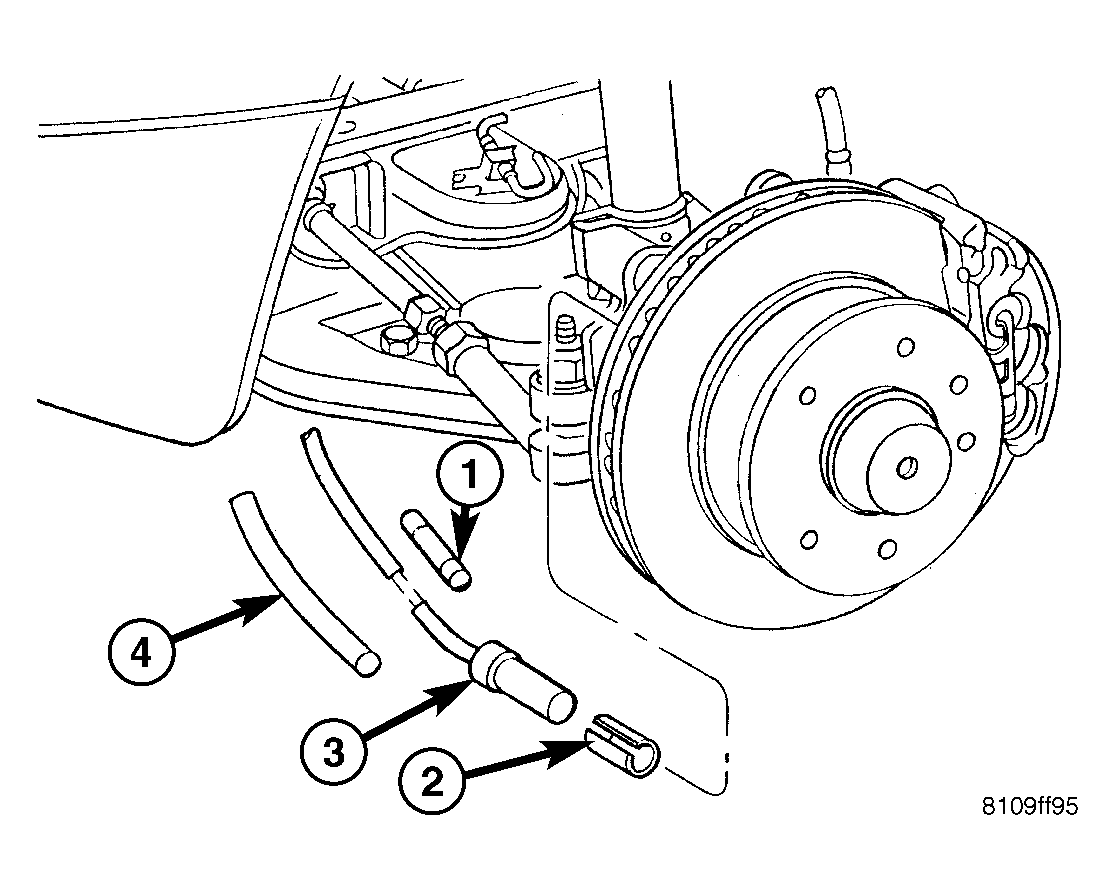

  1. Connect separate wheel speed sensor cables with shrink-fit sleeves and shrink-fit tubing. See Figure.Only do this step if replacing the sensor.
  2. Install the clamping bushing into the knuckle. See FigureOnly do this step if replacing the sensor or the clamping bushing was damaged.
  3. Install the wheel speed sensor all the way into the front wheel hub the wheel speed sensor will self adjust when the vehicle is moved. See Figure.
  4. Install the front wheels.
  5. Lower the vehicle.
