Opening Dimensions

BODY OPENING DIMENSIONS INDEX

DESCRIPTION	FIGURE
ENGINE BOX - ALL	Fig 1.
WINDSHIELD OPENING - ALL	Fig 2.
BODY SIDE DOOR OPENINGS - ALL	Fig 3.
BODY SIDE WINDOW OPENINGS - 118 WB	Fig 4.
BODY SIDE WINDOW OPENINGS - 140 WB	Fig 5.
BODY SIDE WINDOW OPENINGS - 158 WB	Fig 6.
REAR DOOR OPENING - ALL	Fig 7.

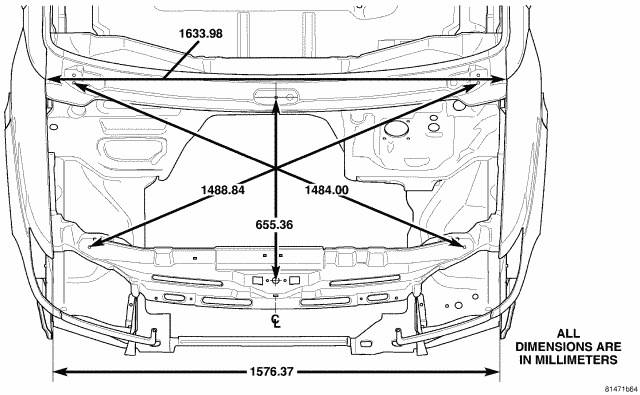

Fig 1: ENGINE BOX - ALL

GC0037371

Courtesy of DAIMLERCHRYSLER CORP.

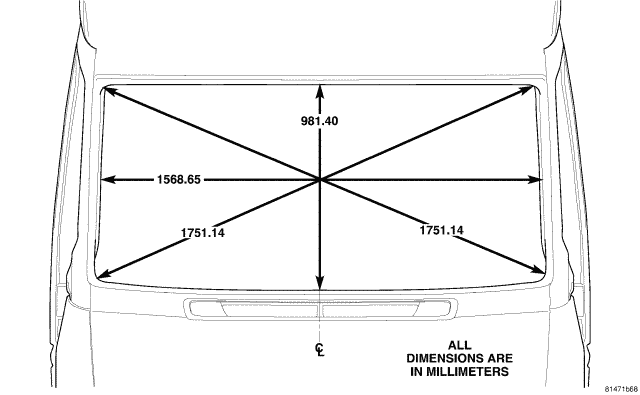

Fig 2: WINDSHIELD OPENING - ALL

GC0037372

Courtesy of DAIMLERCHRYSLER CORP.

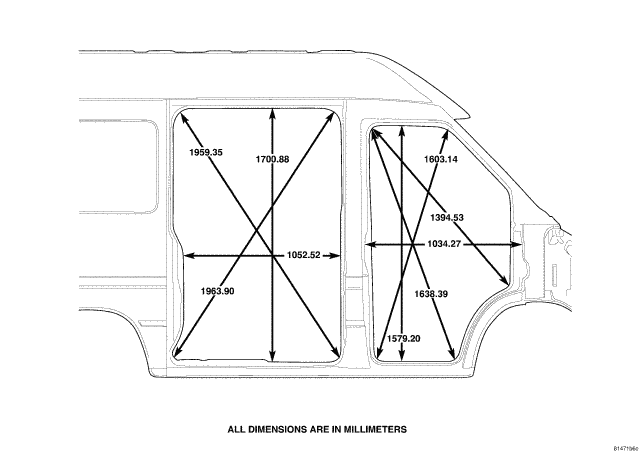

Fig 3: BODY SIDE DOOR OPENINGS - ALL

GC0037373

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: BODY SIDE WINDOW OPENINGS - 118 WB

GC0037374

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: BODY SIDE WINDOW OPENINGS - 140 WB

GC0037375

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: BODY SIDE WINDOW OPENINGS - 158 WB

GC0037376

Courtesy of DAIMLERCHRYSLER CORP.

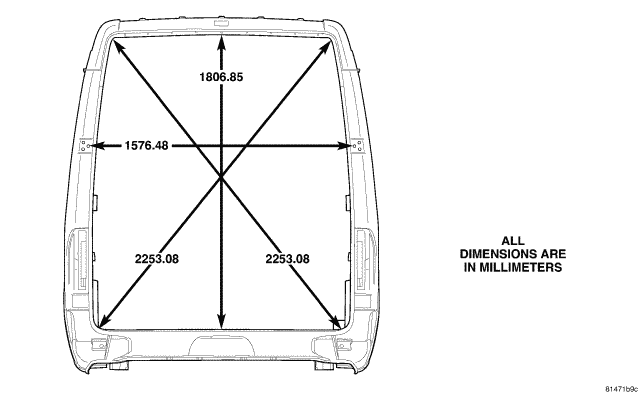

Fig 7: REAR DOOR OPENING - ALL

GC0037377

Courtesy of DAIMLERCHRYSLER CORP.
