Freewheeling Clutch: Disassembly

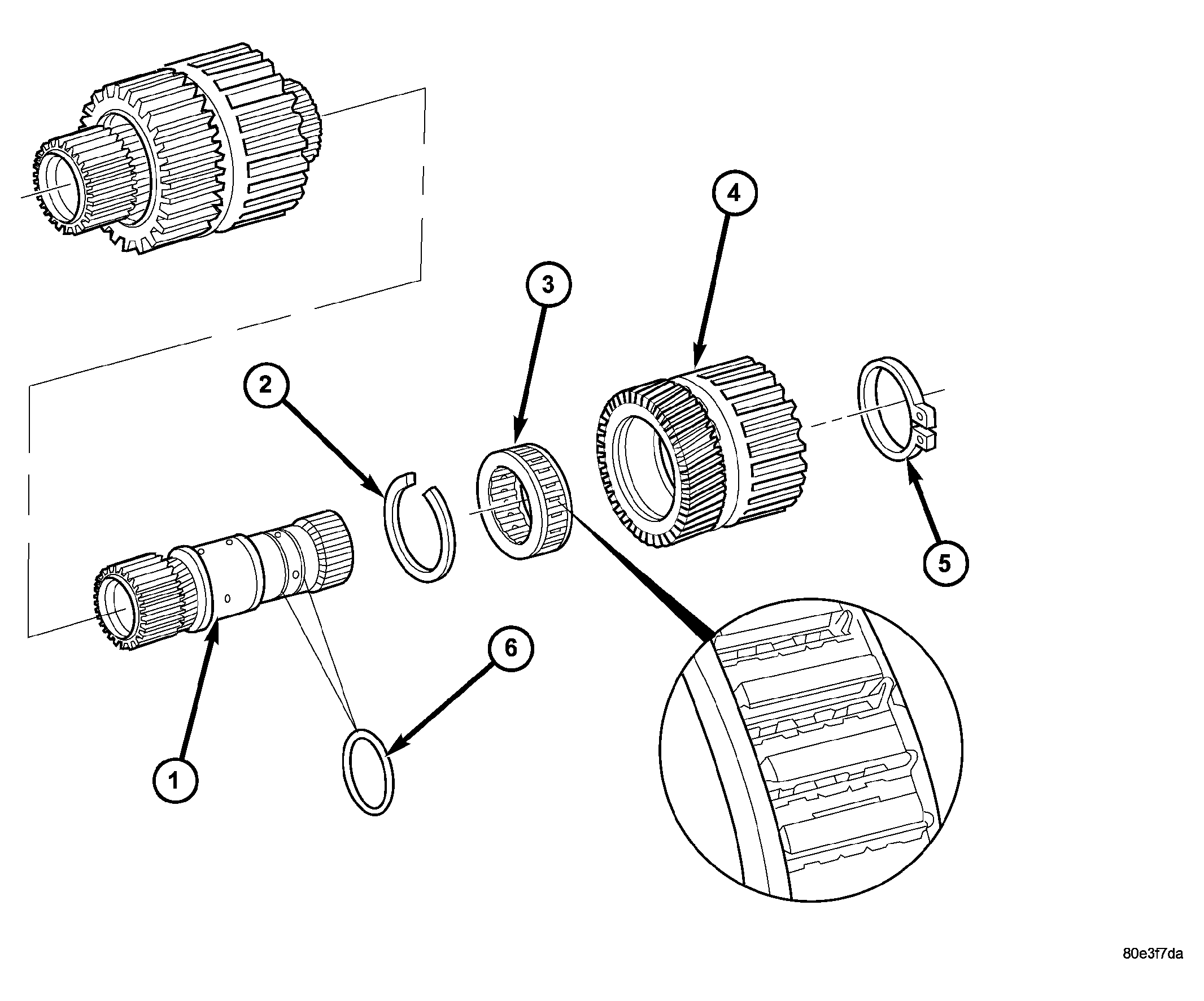

Fig 1: Freewheeling Clutch F2

Courtesy of DAIMLERCHRYSLER CORP.

1 - HOLLOW SHAFT	4 - K3 INNER DISC CARRIER AND REAR PLANETARY SUN GEAR
2 - F2 CLUTCH SNAP-RING	5 - RETAINING RING
3 - FREEWHEELING CLUTCH F2	6 - O-RINGS

Remove retaining ring (5) from hollow shaft (1). See Fig 1.
Remove rear sun gear (4) with the K3 internally toothed disk carrier and rear freewheeling clutch F2 (3).
Remove snap-ring (2) for freewheel. See Fig 1.
Press freewheeling clutch (3) out of sun gear.

Check O-rings (6), replace if necessary.

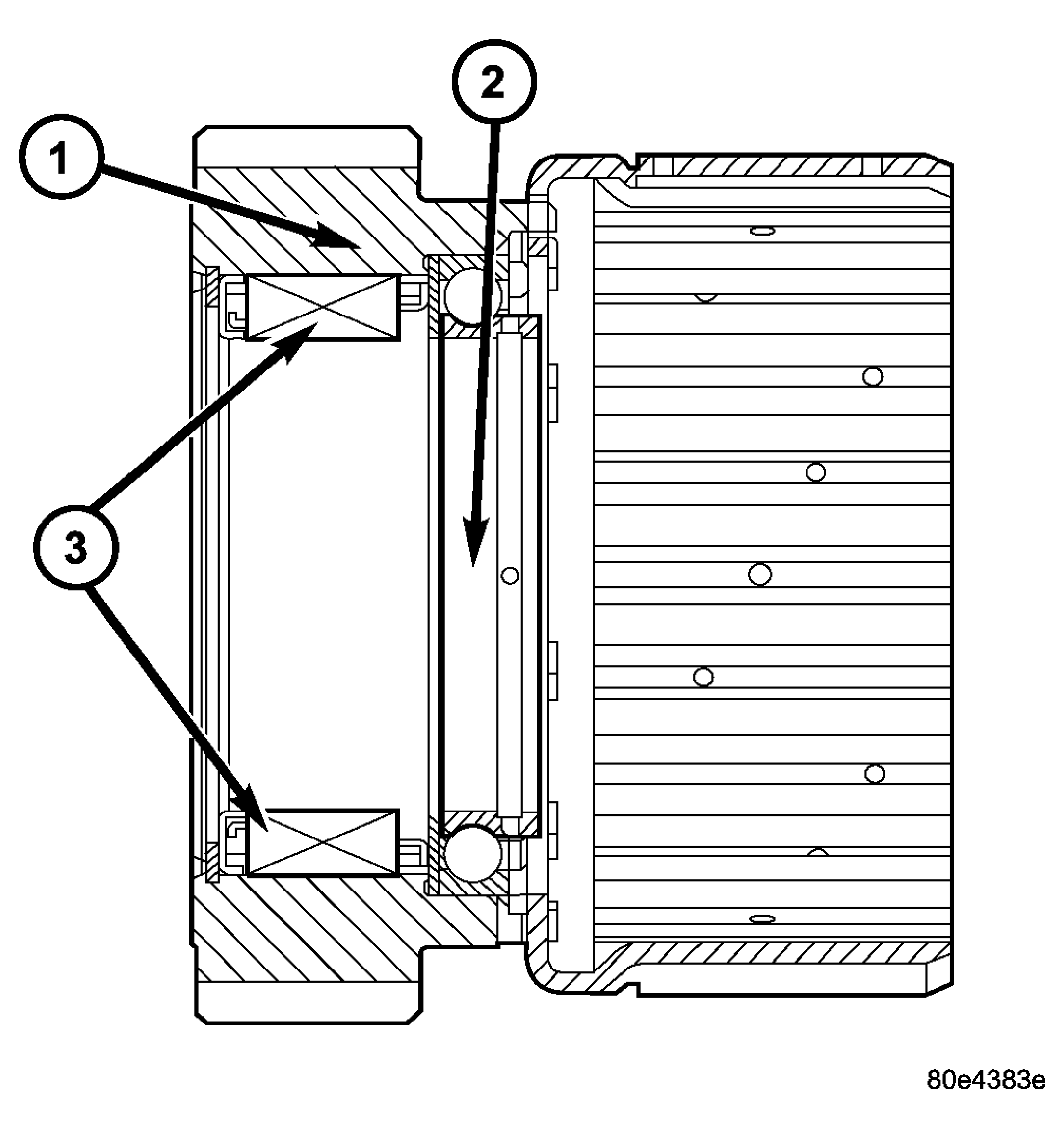

Fig 2: Freewheeling Clutch F2 Anti-Friction Bearing

Courtesy of DAIMLERCHRYSLER CORP.

1 - K3 INNER DISC CARRIER AND REAR PLANETARY SUN GEAR

2 - ANTI-FRICTION BEARING

3 - FREEWHEELING CLUTCH F2

Check the anti-friction bearing (2) in the rear planetary sun gear for damage. Replace as necessary. See Fig 2.
