Suspension System: Front: Bushings: Removal

Remove the lower control arm (Refer to SUSPENSION/FRONT/LOWER CONTROL ARM - REMOVAL) .
Install the lower control arm in a vise.

Install special tool C-4212F (Press) with special tool 9302-1 (Driver) and 9302-3 (Receiver). See Fig 1.

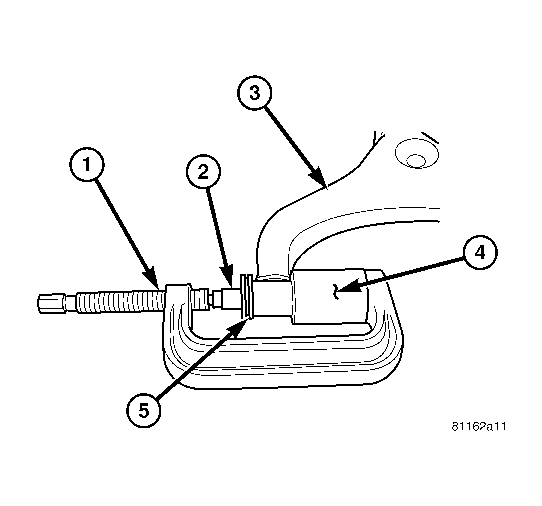

Fig 1: LCA Bushing Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL C-4212F (PRESS)

2 - SPECIAL TOOL 9302-1 (DRIVER)

3 - LOWER CONTROL ARM

4 - SPECIAL TOOL 9302-3 (RECEIVER CUP)

5 - BUSHING
