Installation - Inboard

WARNING: To avoid personal injury or death, during and following any seat belt service, carefully inspect all seat belts, buckles, mounting hardware, retractors, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Never attempt to repair a seat belt component. Always replace damaged or faulty seat belt components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.

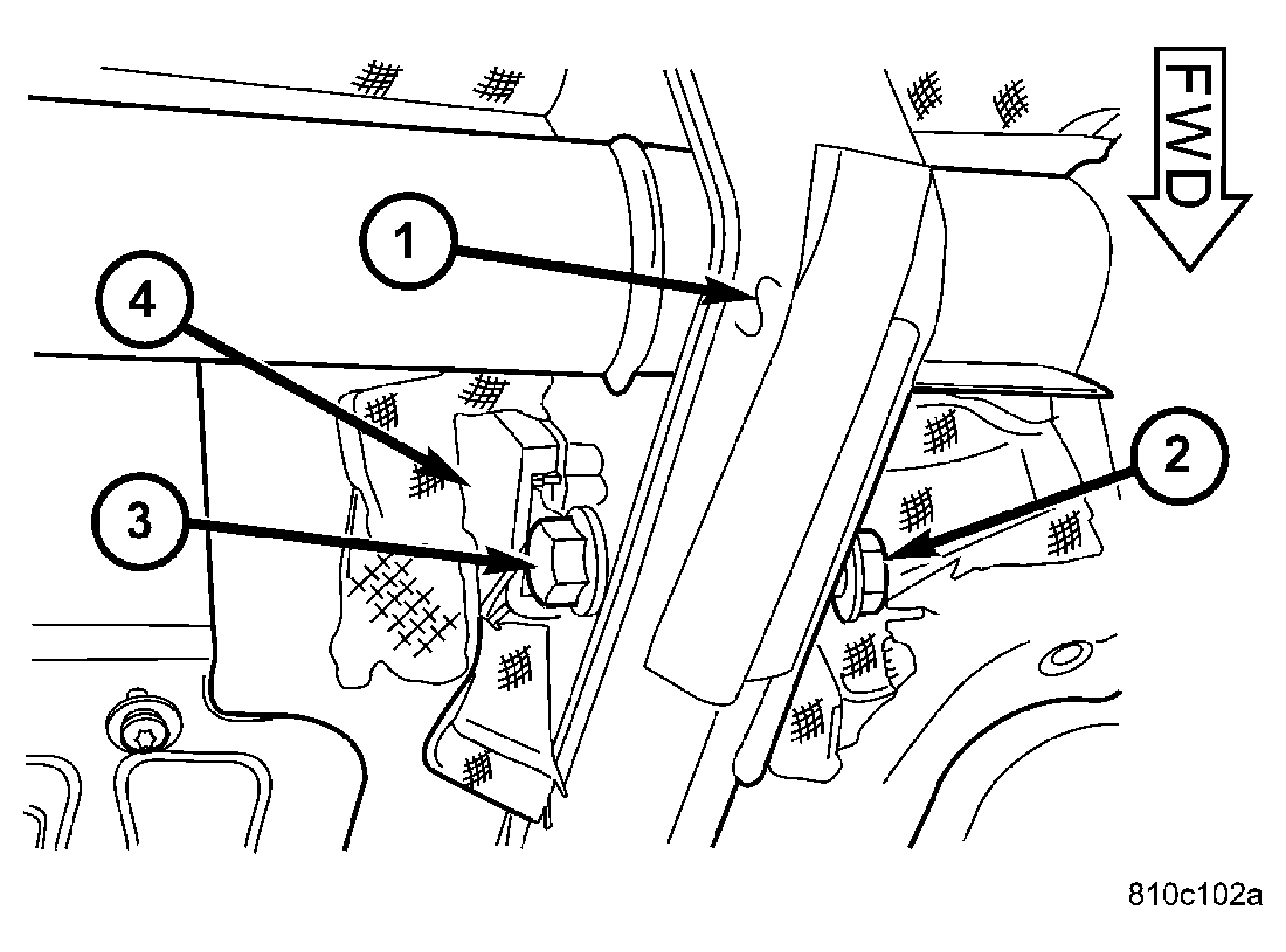

  1. Position the inboard rear seat belt buckle to the rear seat cushion frame. See Figure.
  2. Install and tighten the screw that secures either the inboard rear seat belt buckle to the rear seat cushion frame. Tighten the screw to 35 N.m (26 ft. lbs.).
  3. Reinstall the plastic shield onto the back of the rear seat. (Refer to BODY/SEATS/REAR SEAT BACK SHIELD - INSTALLATION) .
  4. Reinstall the rear bench seat into the vehicle.
