Accelerator Pedal Position Sensor (OBD)

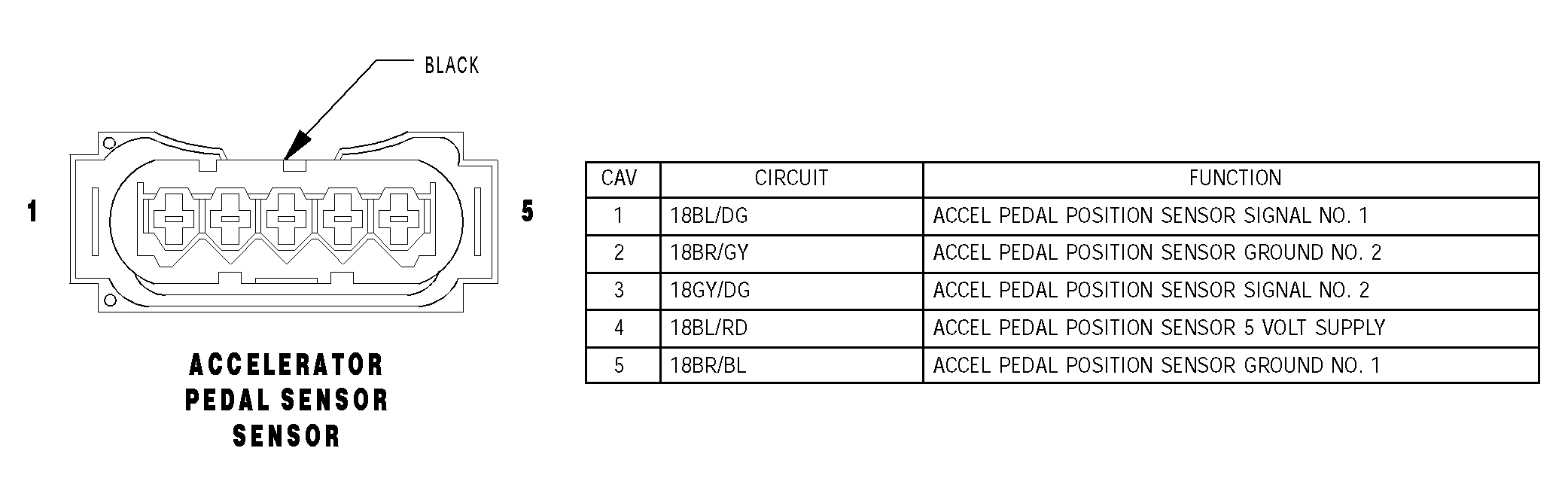

Fig 1: Identifying Accelerator Pedal Position Sensor (OBD) Connector Pinouts

G04536618

Courtesy of DAIMLERCHRYSLER CORP.
