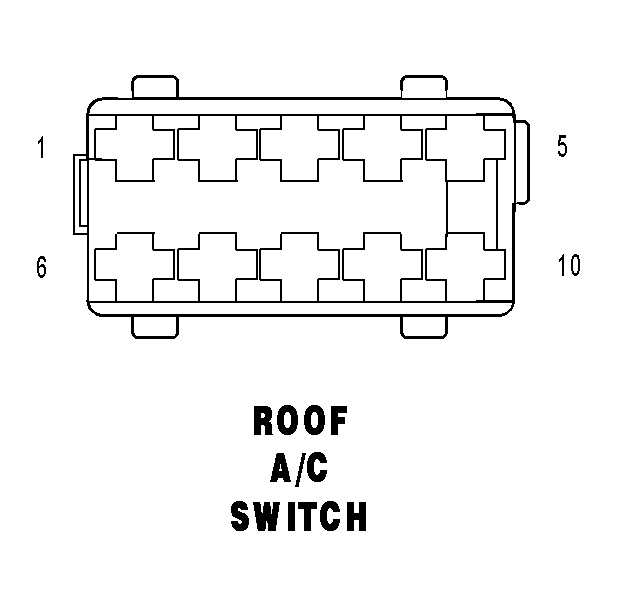

Roof A/C Switch Connector End View

ROOF A/C SWITCH

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	16GY/DG/RD	LAMP DRIVER
2	-	-
3	16RD/BK	FUSED D(+) RELAY NO. 1 OUTPUT
4	16VT	A/C FAN MOTOR CONTROL-HIGH SPEED
5	-	-
6	-	-
7	16YL	A/C FAN MOTOR CONTROL-LOW SPEED
8	16RD/BK	FUSED D(+) RELAY NO. 1 OUTPUT
9	-	-
10	16BR	GROUND
