Left Interior Lamp Connector End View

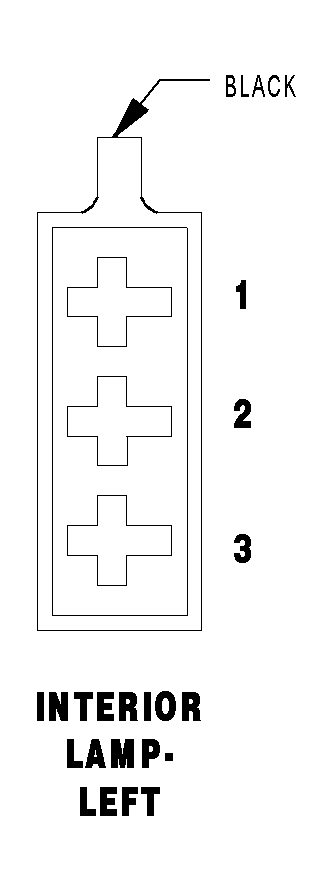

INTERIOR LAMP-LEFT - BLACK

GCVA580181Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD/YL FUSED B(+)
3 16BR/WT DOOR AJAR SWITCH SENSE
