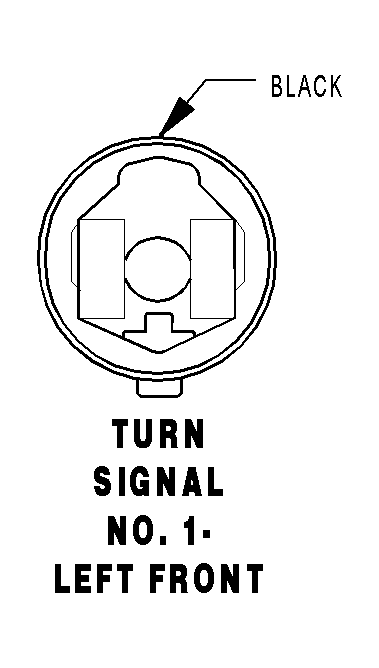

Left Front Turn Signal 1 Connector End View
Left Front Turn Signal 1 Connector End View
TURN SIGNAL NO. 1-LEFT FRONT - BLACK
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
16BK/WT
LEFT TURN SIGNAL
2
16BR
GROUND
