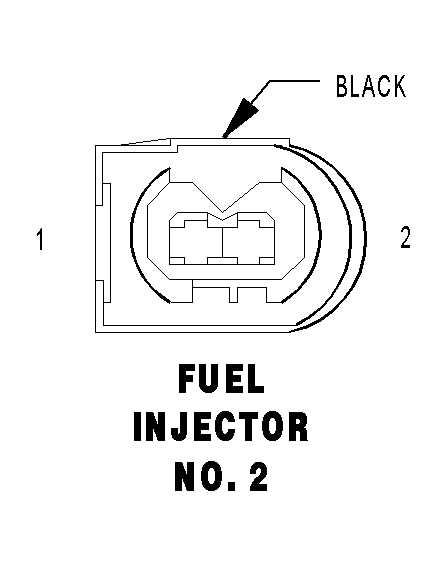

Fuel Injector 2 Connector End View
FUEL INJECTOR NO. 2 - BLACK
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
14BK/VT (EXCEPT OBD) |
FUEL INJECTOR NO. 2 CONTROL |
| 1 |
16BK/BL (OBD) |
FUEL INJECTOR NO. 2 LOW-SIDE CONTROL |
| 2 |
14BL (EXCEPT OBD) |
COMMON INJECTOR DRIVER NO. 2 |
| 2 |
16BK (OBD) |
FUEL INJECTOR NO. 2 HIGH-SIDE CONTROL |
