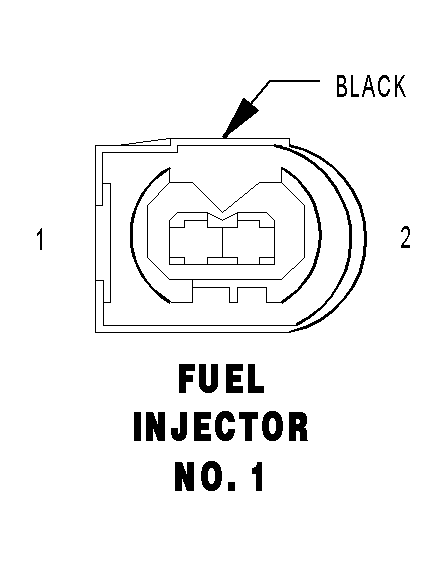

Fuel Injector 1 Connector End View
FUEL INJECTOR NO. 1 - BLACK
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
14BK/BL (EXCEPT OBD) |
FUEL INJECTOR NO. 1 CONTROL |
| 1 |
16BK/RD (OBD) |
FUEL INJECTOR NO. 1 LOW-SIDE CONTROL |
| 2 |
14BK (EXCEPT OBD) |
COMMON INJECTOR DRIVER NO. 1 |
| 2 |
16BL (OBD) |
FUEL INJECTOR NO. 1 HIGH-SIDE CONTROL |
