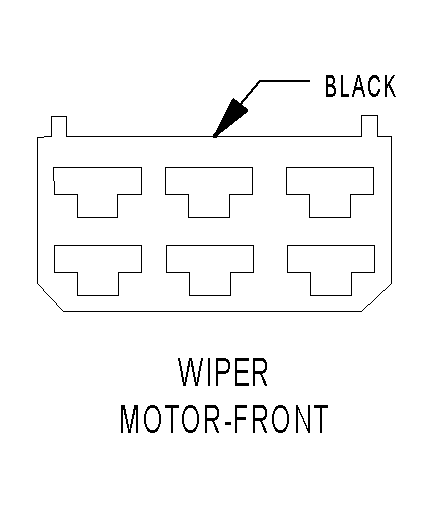

Front Wiper Motor Connector End View
WIPER MOTOR-FRONT - BLACK
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
16BR |
GROUND |
| 2 |
16BR/BK |
WIPER ON/OFF RELAY OUTPUT |
| 3 |
16BK/VT |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 4 |
- |
- |
| 5 |
16BK |
WIPER MOTOR CONTROL |
| 6 |
16BK/GY/RD |
WIPER SWITCH OUTPUT |
