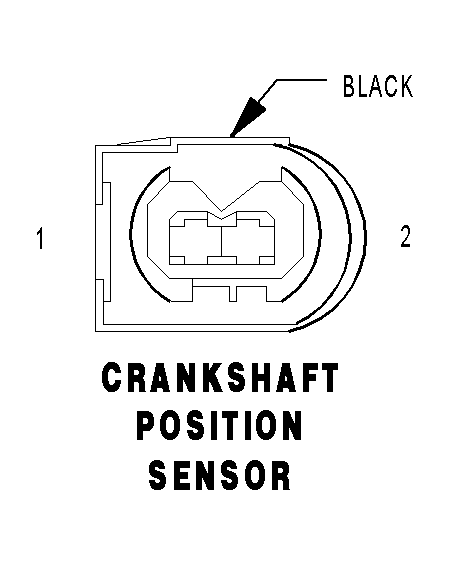

Crankshaft Position Sensor Connector End View
CRANKSHAFT POSITION SENSOR - BLACK
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20DG (EXCEPT OBD) |
CRANKSHAFT POSITION SENSOR SIGNAL NO. 2 |
| 1 |
20DG/WT (OBD) |
CRANKSHAFT POSITION SENSOR SIGNAL NO. 1 |
| 2 |
20DG/WT (EXCEPT OBD) |
CRANKSHAFT POSITION SENSOR SIGNAL NO. 1 |
| 2 |
20DG (OBD) |
CRANKSHAFT POSITION SENSOR SIGNAL NO. 2 |
