Auxiliary Heater Control Connector End View

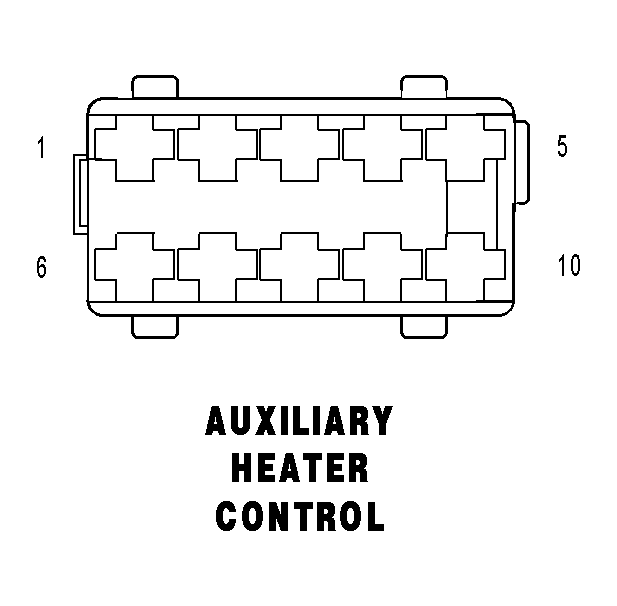

AUXILIARY HEATER CONTROL

GCVA580284Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 16GY/DG/RD LAMP DRIVER
2 - -
3 16RD/YL FUSED B(+)
4 - -
5 - -
6 - -
7 16YL CABIN HEATER CONTROL
8 - -
9 - -
10 16BR GROUND
