Assist Handle: Removal

  1. Hold the handle in the down position and remove the screws. See Fig 1.

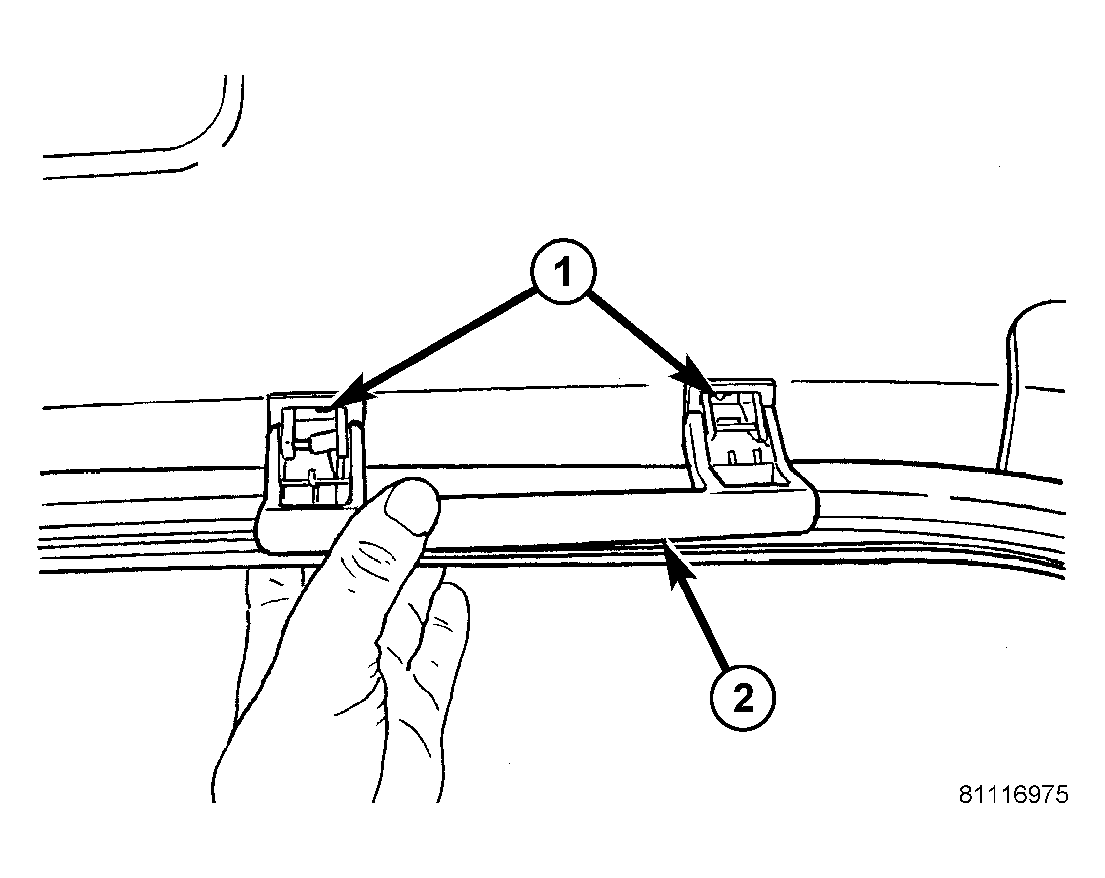

Fig 1: ASSIST HANDLE
GC0037350Courtesy of DAIMLERCHRYSLER CORP.
1 - SCREWS (2)
2 - ASSIST HANDLE
