Modular Clutch: Description

The modular clutch assembly is located between the engine and manual transaxle in the transaxle bellhousing, and is responsible for transmitting engine power to the transaxle. The modular clutch assembly consists of the following components: See Fig 1.

• Flywheel
• Clutch Disc
• Pressure Plate
• Diaphragm Spring

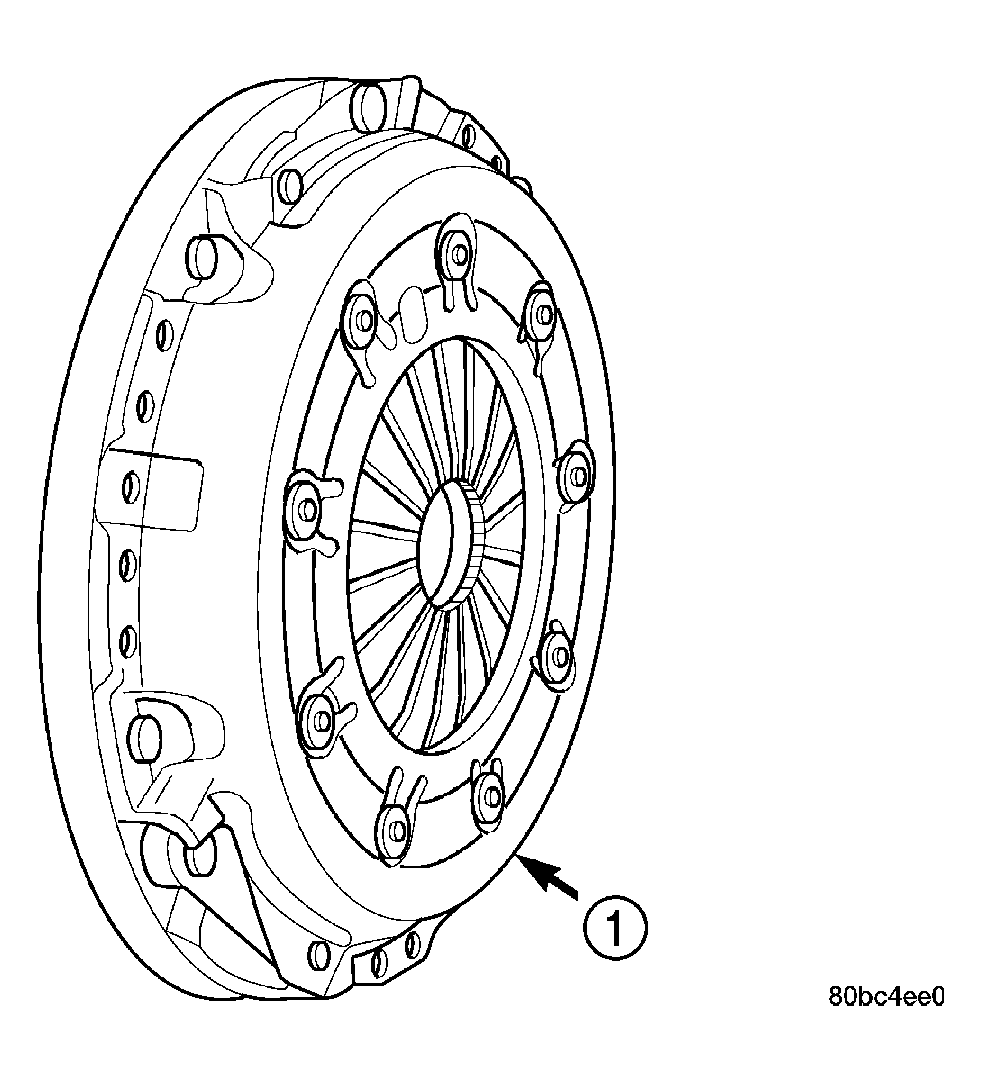

Fig 1: Modular Clutch Assembly

Courtesy of DAIMLERCHRYSLER CORP.
