Knock Sensor - Black 2 Way

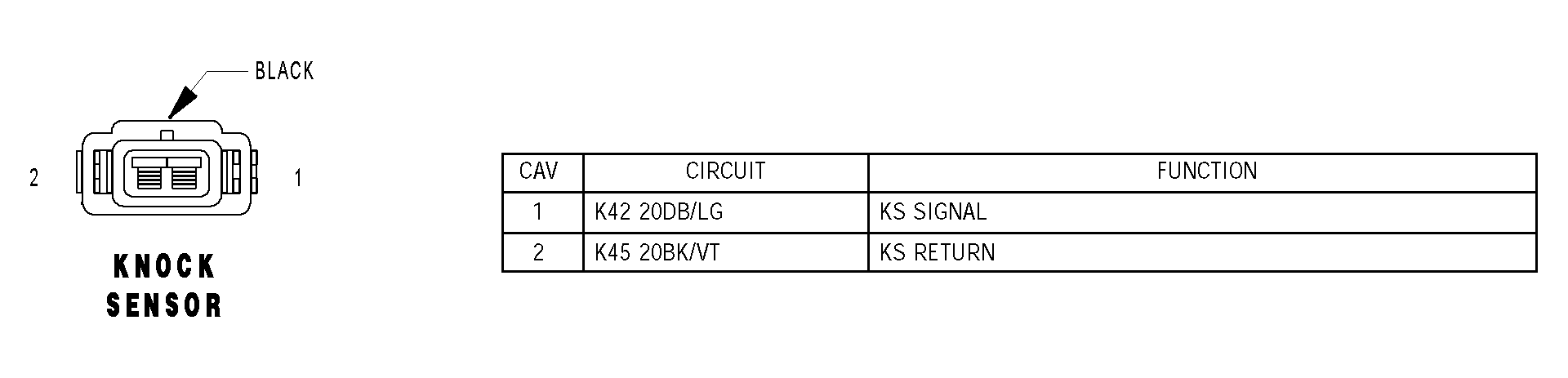

Fig 1: Identifying Knock Sensor Connector Pinouts - Black 2 Way

G04549732

Courtesy of DAIMLERCHRYSLER CORP.
