Installation - 2.4L SRT-4

  1. Clean and replace gasket. See Figure.
  2. Install the 2 screws for the throttle cable bracket and tighten.

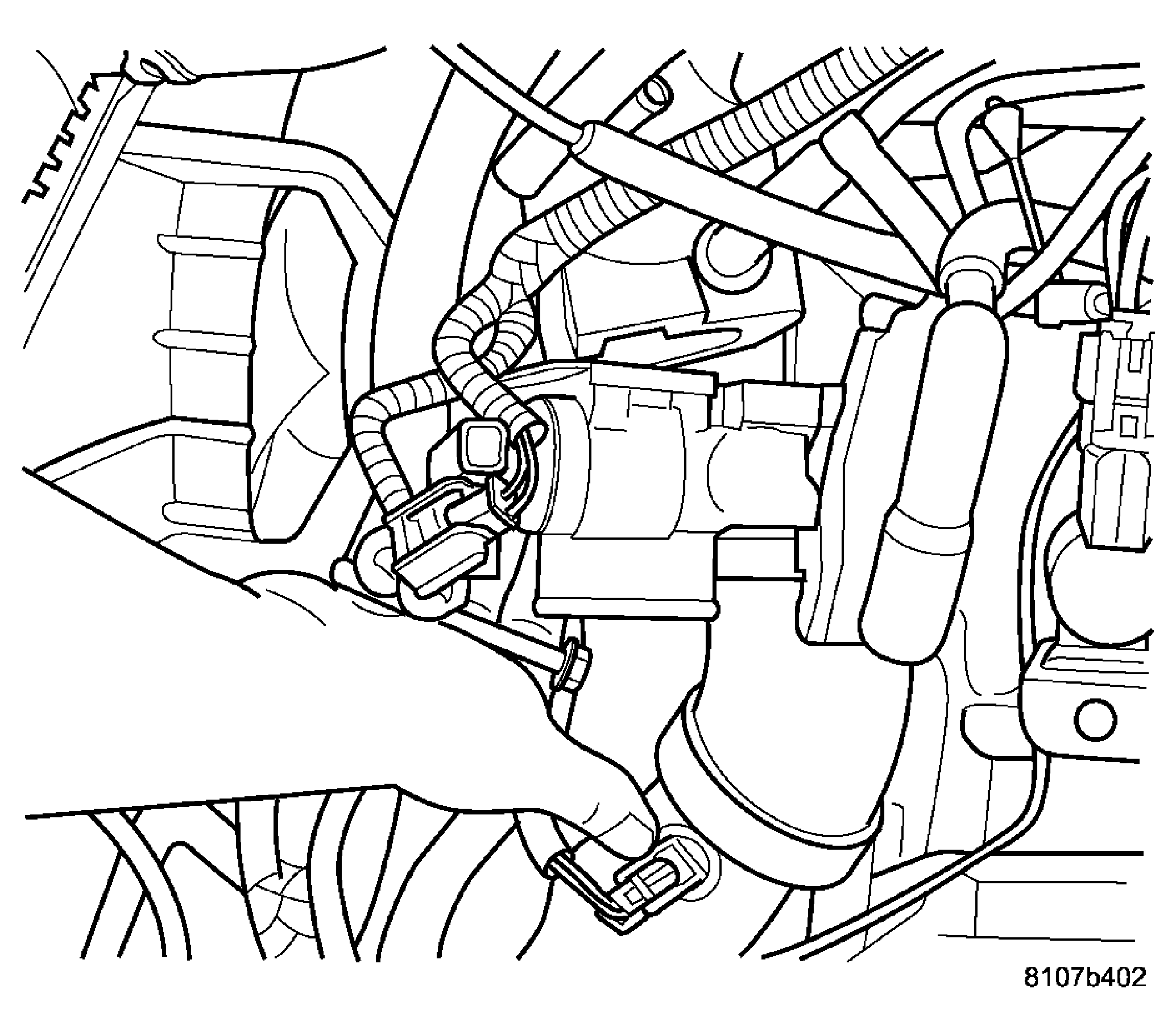

  3. Install the throttle body. See Figure.
  4. Install the 2 bolts for the throttle body and tighten.
  5. Install the throttle cable to the throttle body lever.
  6. Connect the purge hose to the throttle body.
  7. Connect the throttle body inlet hose and tighten clamp.

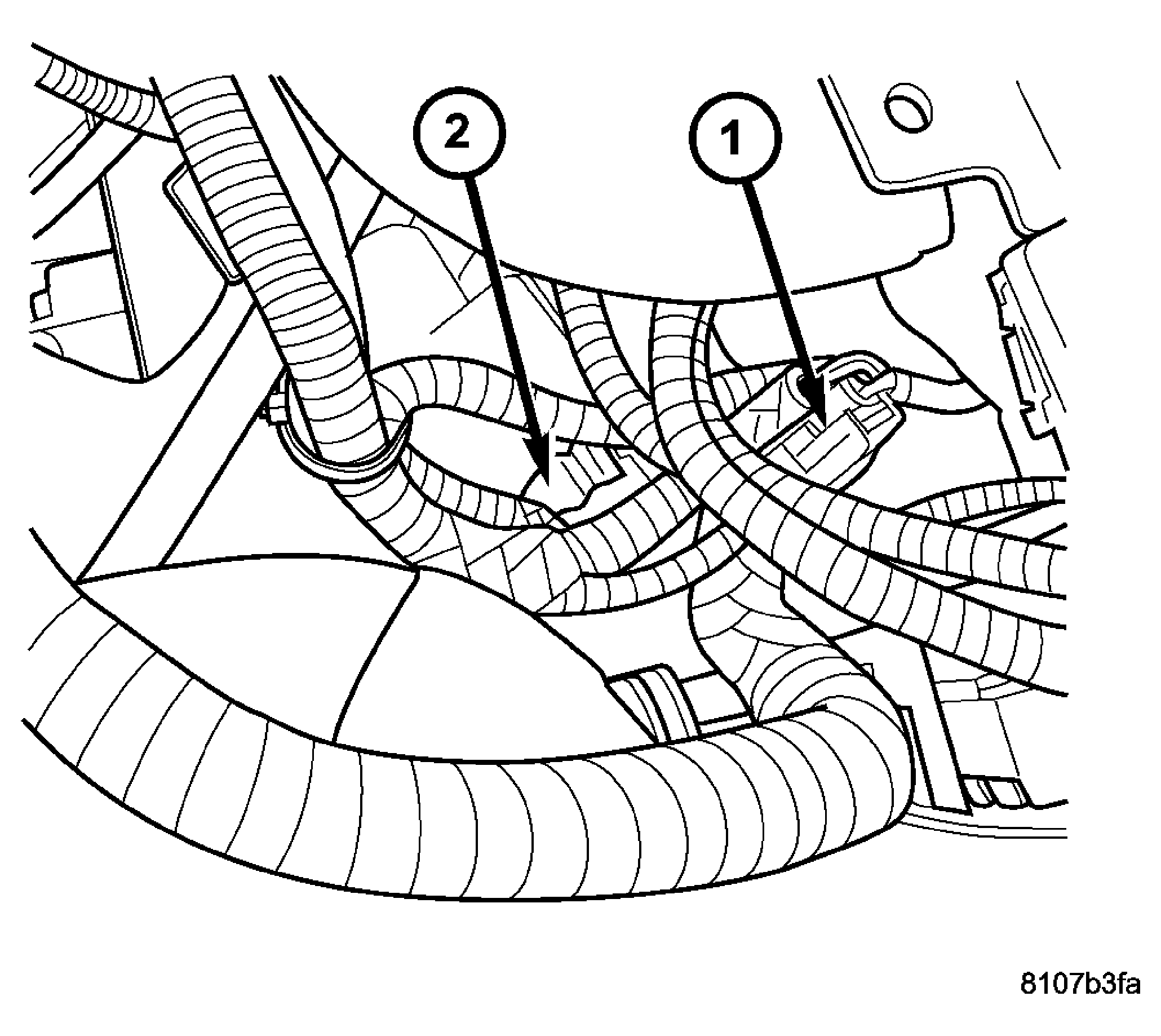

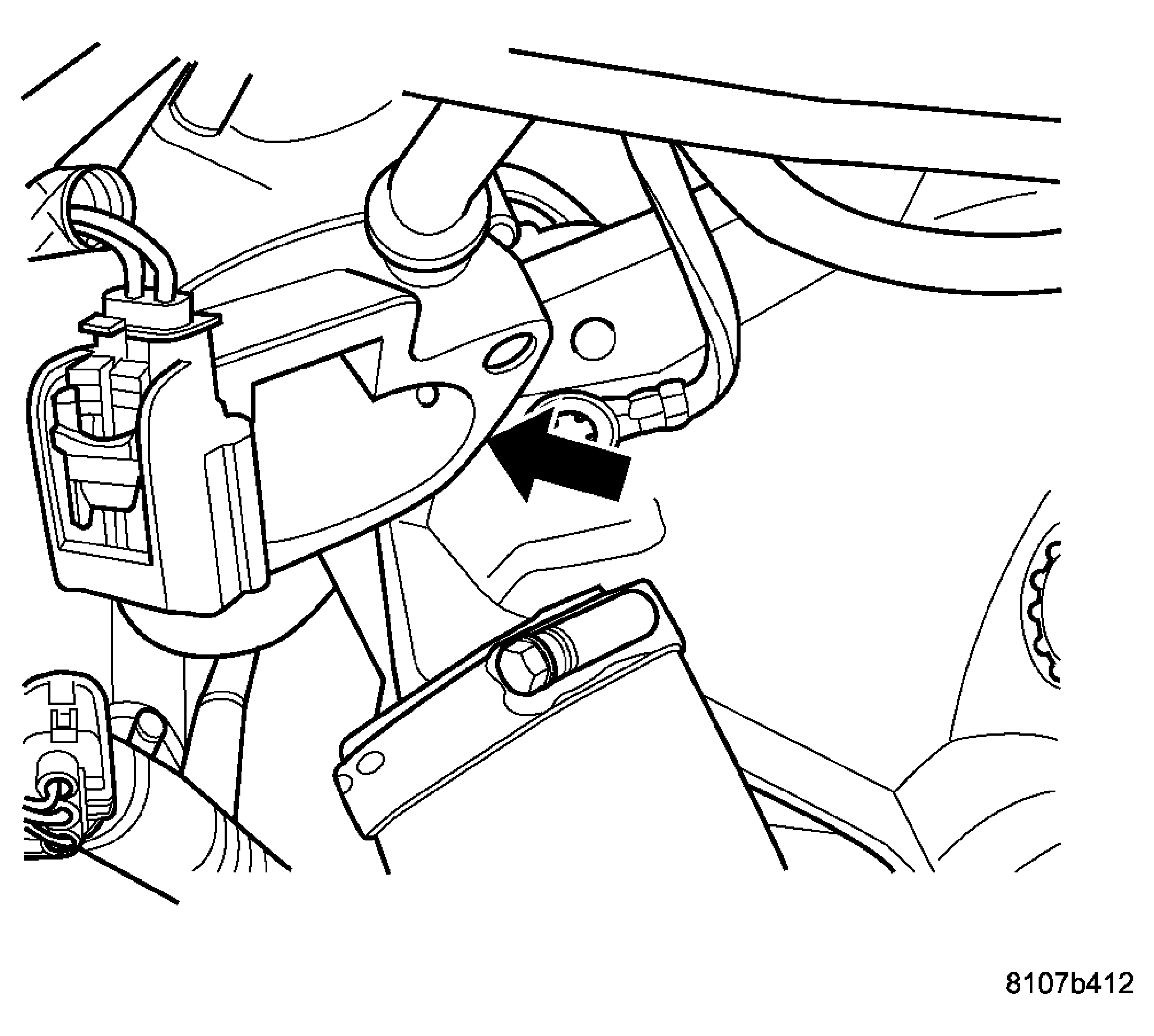

  8. Connect and lock the electrical connectors to the idle air control motor and throttle position sensor. See Figure.
  9. Install the air cleaner box, refer to the Engine/Air Cleaner Housing, for more information.
  10. Install the makeup air hose for the PCV system.

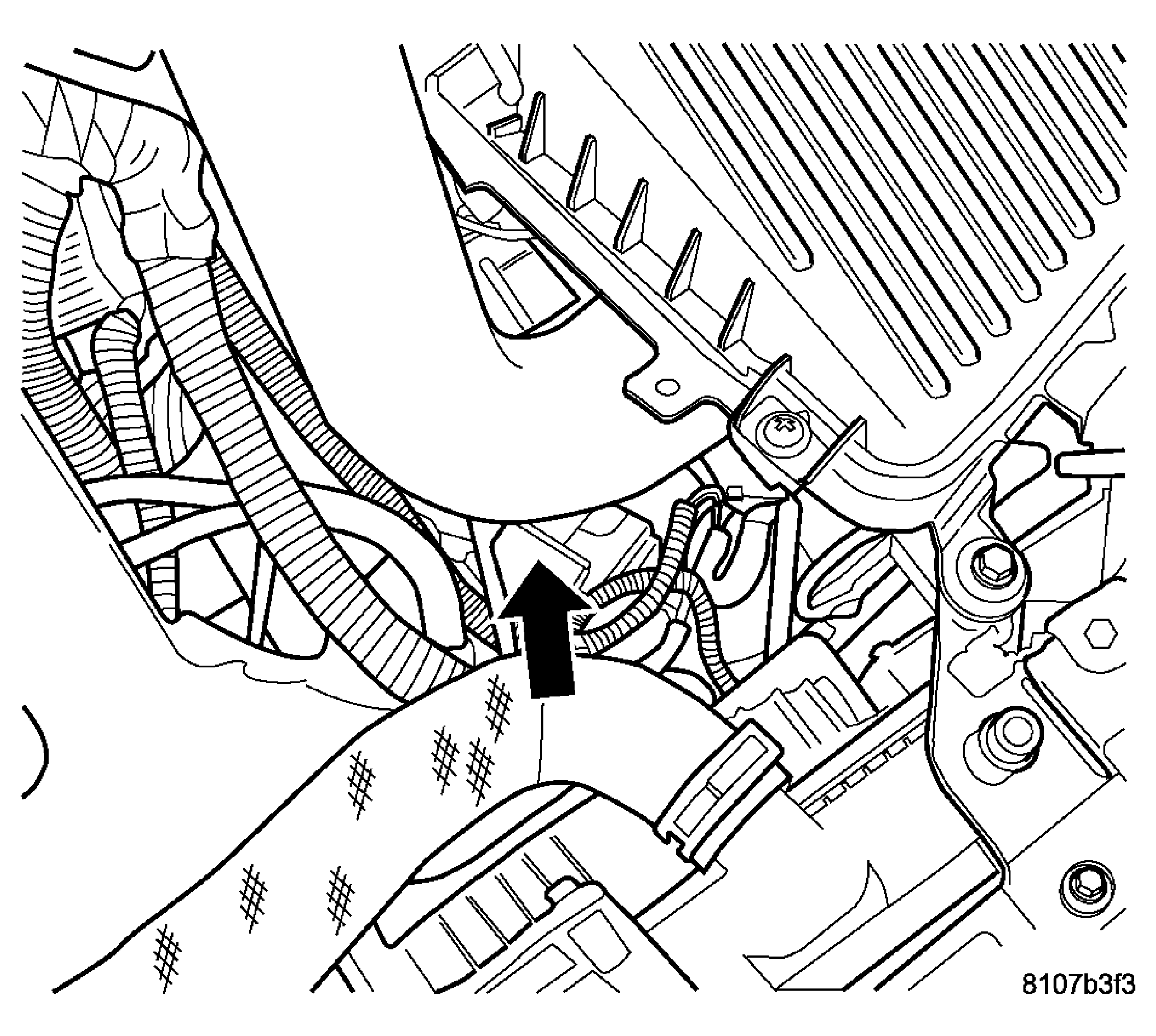

  11. Install the turbo inlet hose to the air cleaner housing. See Figure.

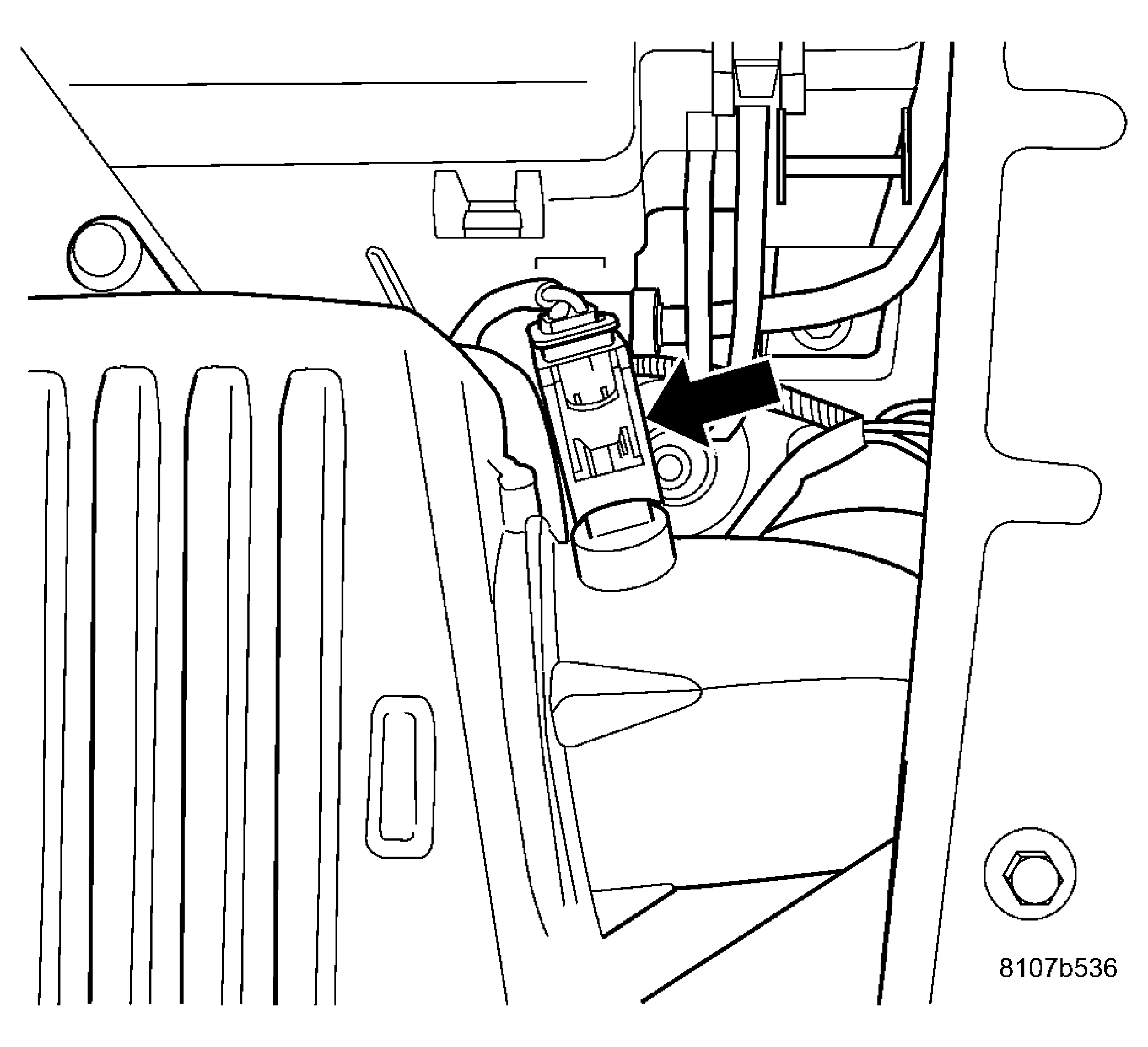

  12. Connect and lock the electrical connector for the ambient air temperature sensor. See Figure.
  13. Connect the negative battery cable.
