Removal - RHD

  1. Disconnect the negative battery cable.
  2. Remove the 2 bracket mounting bolts. See Fig 1.
    Fig 1: APPS MOUNTING
    GC0019449Courtesy of DAIMLERCHRYSLER CORP.
    1 - MODULE MOUNTING BOLTS
    2 - BRACKET MOUNTING BOLTS
  3. Remove the 2 bolts holding module to the mounting bracket
  4. Unlock the electrical connector and then disconnect the electrical connector from the module. See Fig 2.

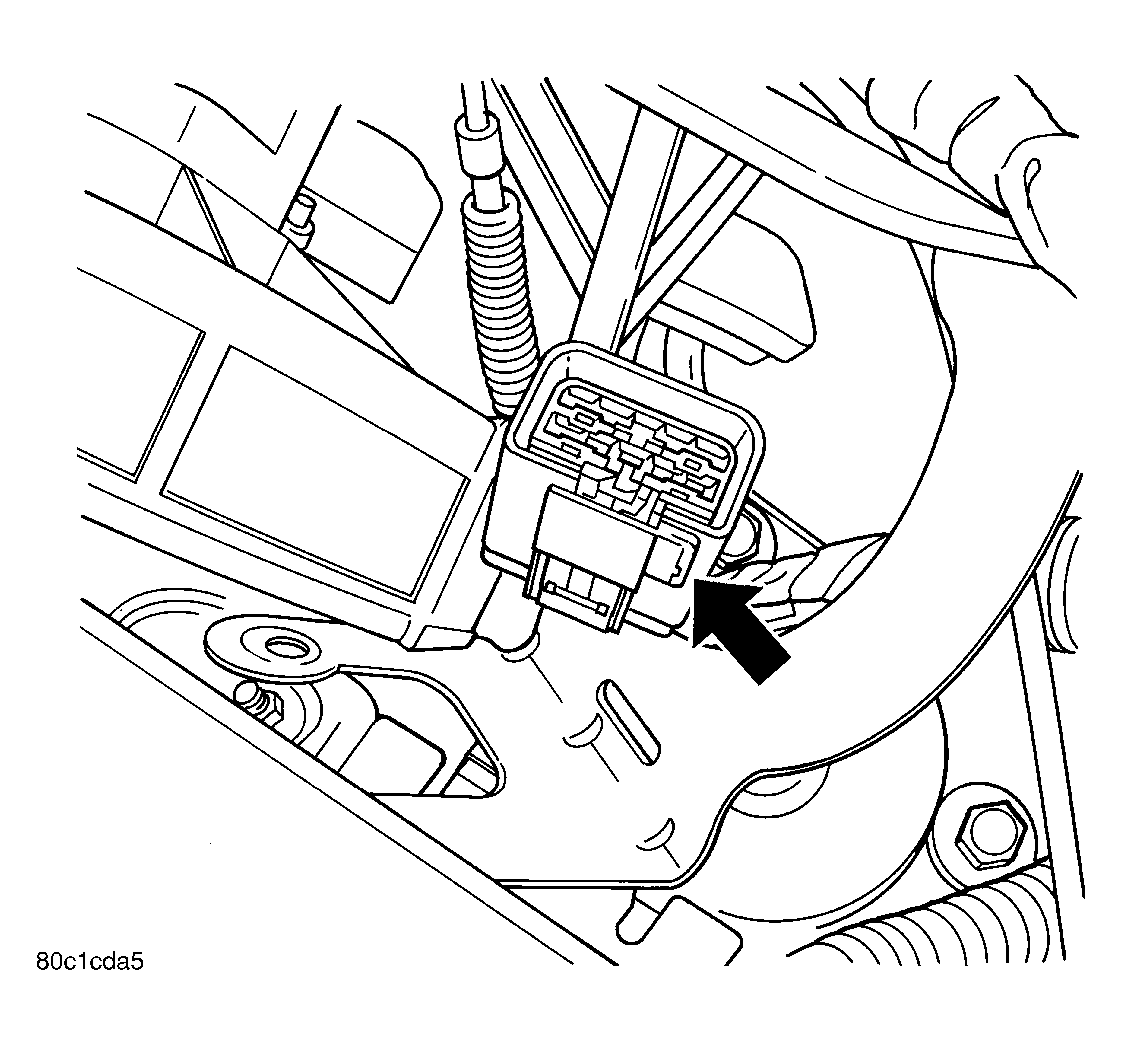

    Fig 2: ELECTRICAL CONNECTOR
    GC0019450Courtesy of DAIMLERCHRYSLER CORP.
  5. Open the APPS module cover and disconnect the cable from the cam and module.
  6. Remove assembly.
