Installation - LHD

  1. Open APPS module and connect the cable. See Fig 1.
  2. Install APPS module.
  3. Tighten the 2 mounting bolts. See Fig 1.

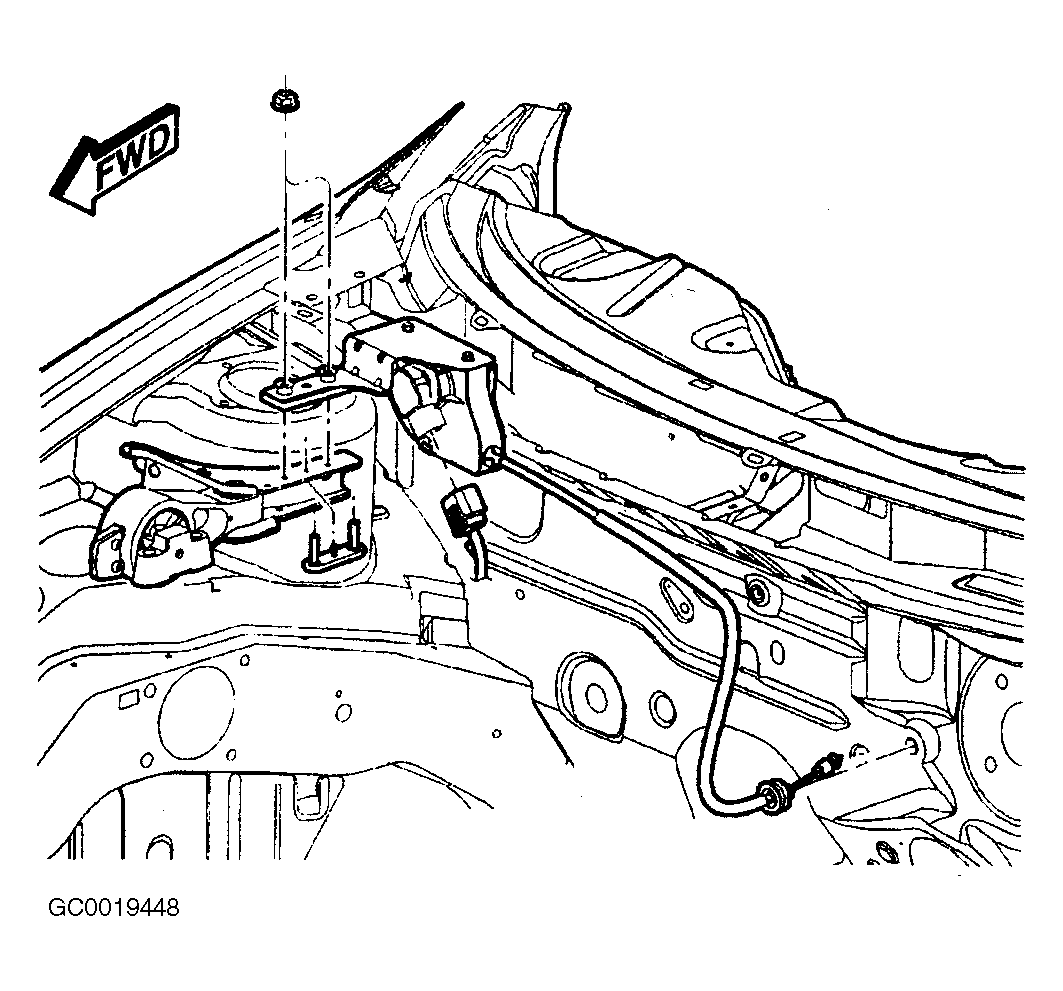

    Fig 1: APPS AND CABLE LHD
    GC0019448Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect the negative battery cable.
