Specifications - Structural Adhesive Locations

STRUCTURAL ADHESIVE LOCATIONS INDEX

DESCRIPTION	FIGURE
RAIL TO FRONT FLOOR PAN	Fig 1.
ROOF BOW TO ROOF PANEL	Fig 2.
CENTER PILLAR TO EXTENSION	Fig 3.
RAIL TO REAR FLOOR PAN	Fig 4.
DYNAMIC SIDE IMPACT REINFORCEMENT TO FRONT HINGE PILLAR	Fig 5.

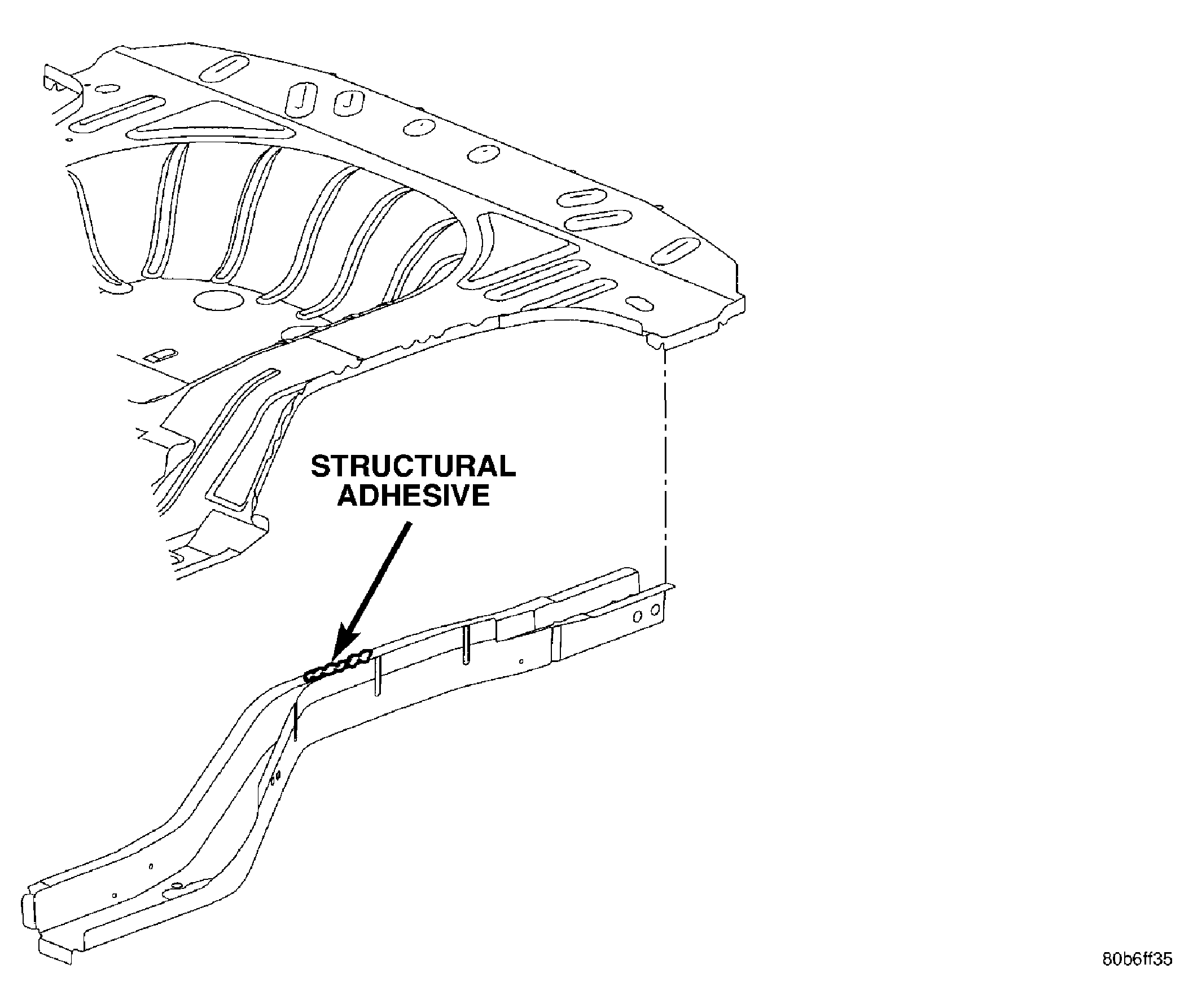

Fig 1: RAIL TO FRONT FLOOR PAN

Courtesy of DAIMLERCHRYSLER CORP.

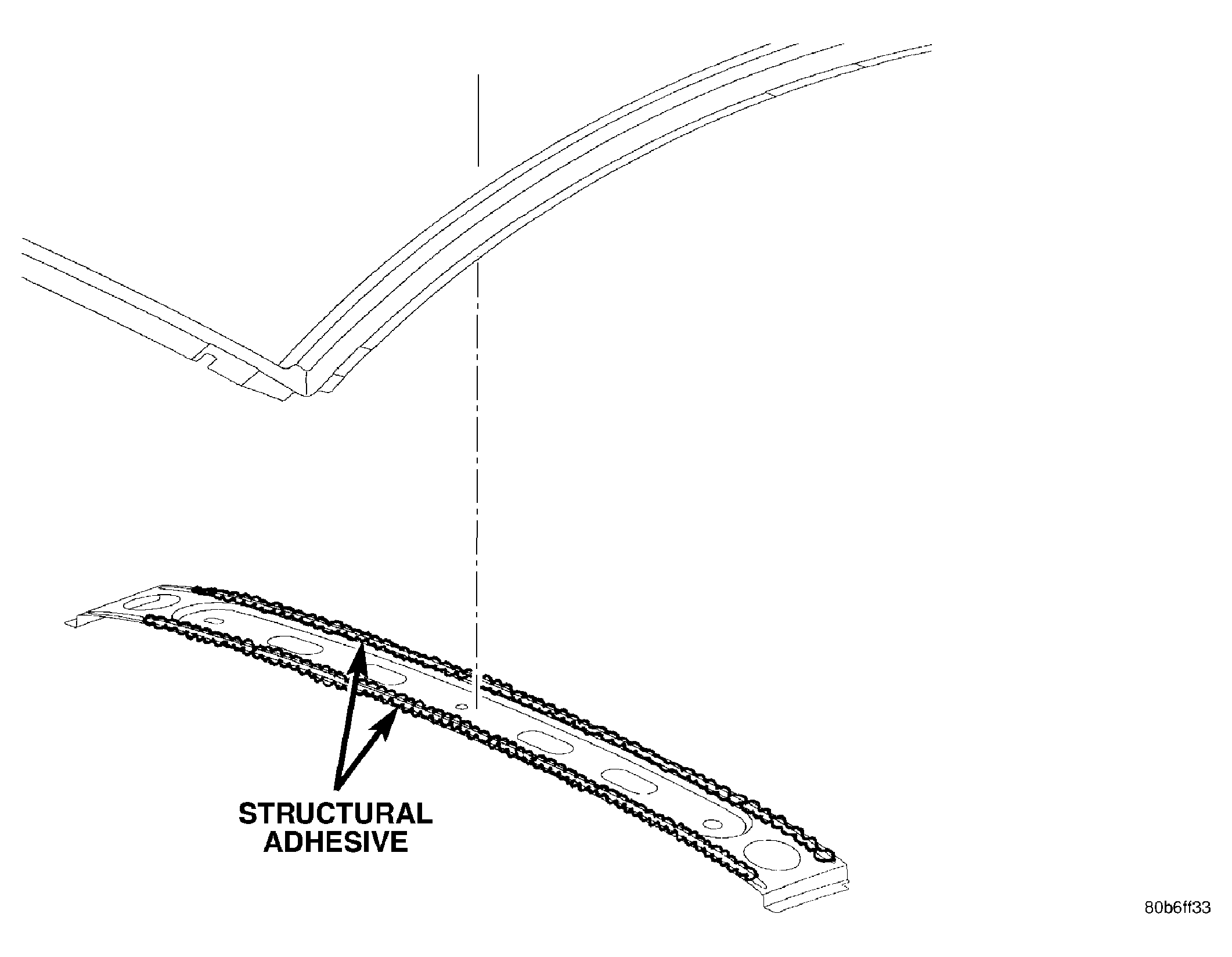

Fig 2: ROOF BOW TO ROOF PANEL

Courtesy of DAIMLERCHRYSLER CORP.

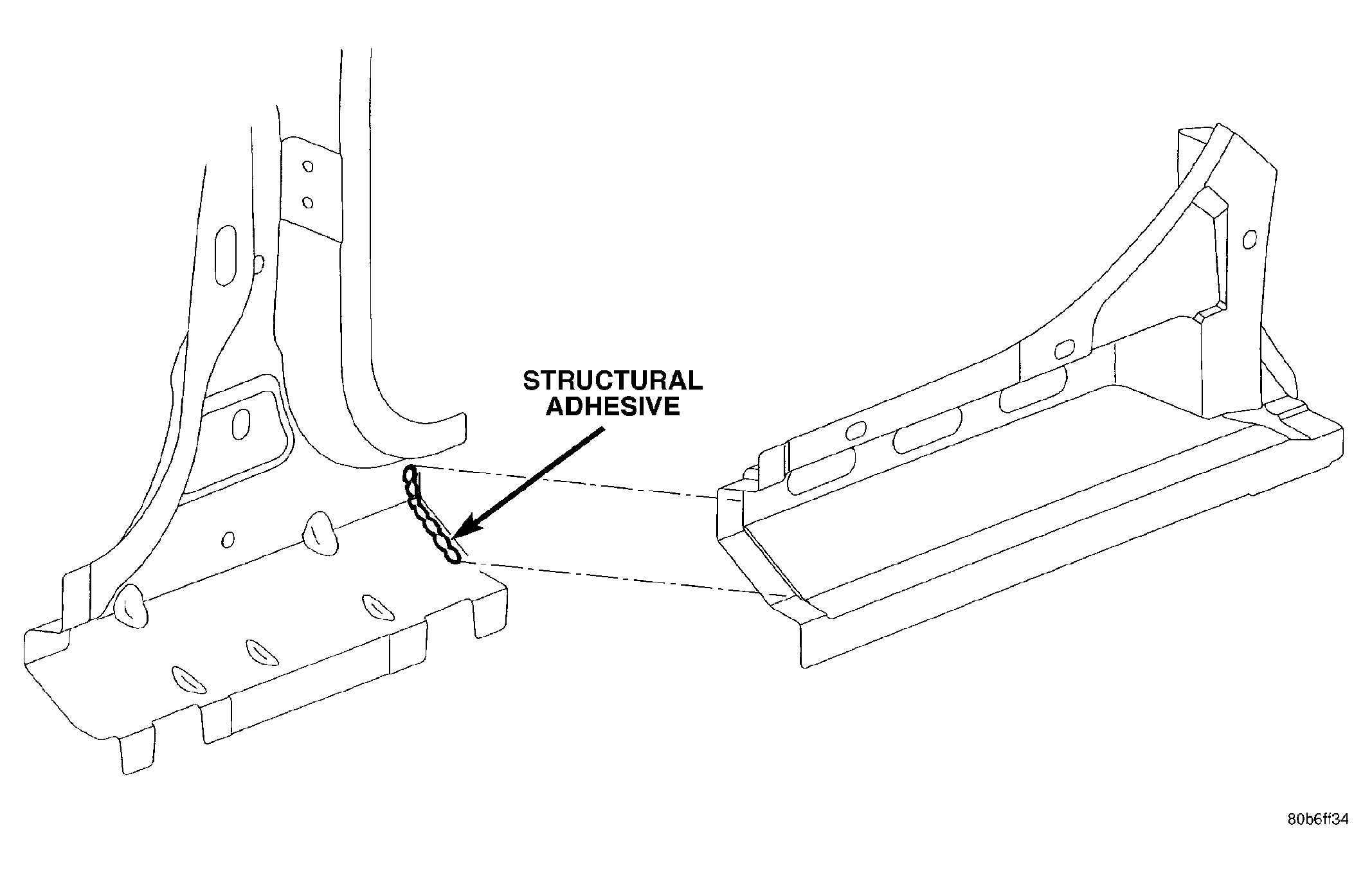

Fig 3: CENTER PILLAR TO EXTENSION

Courtesy of DAIMLERCHRYSLER CORP.

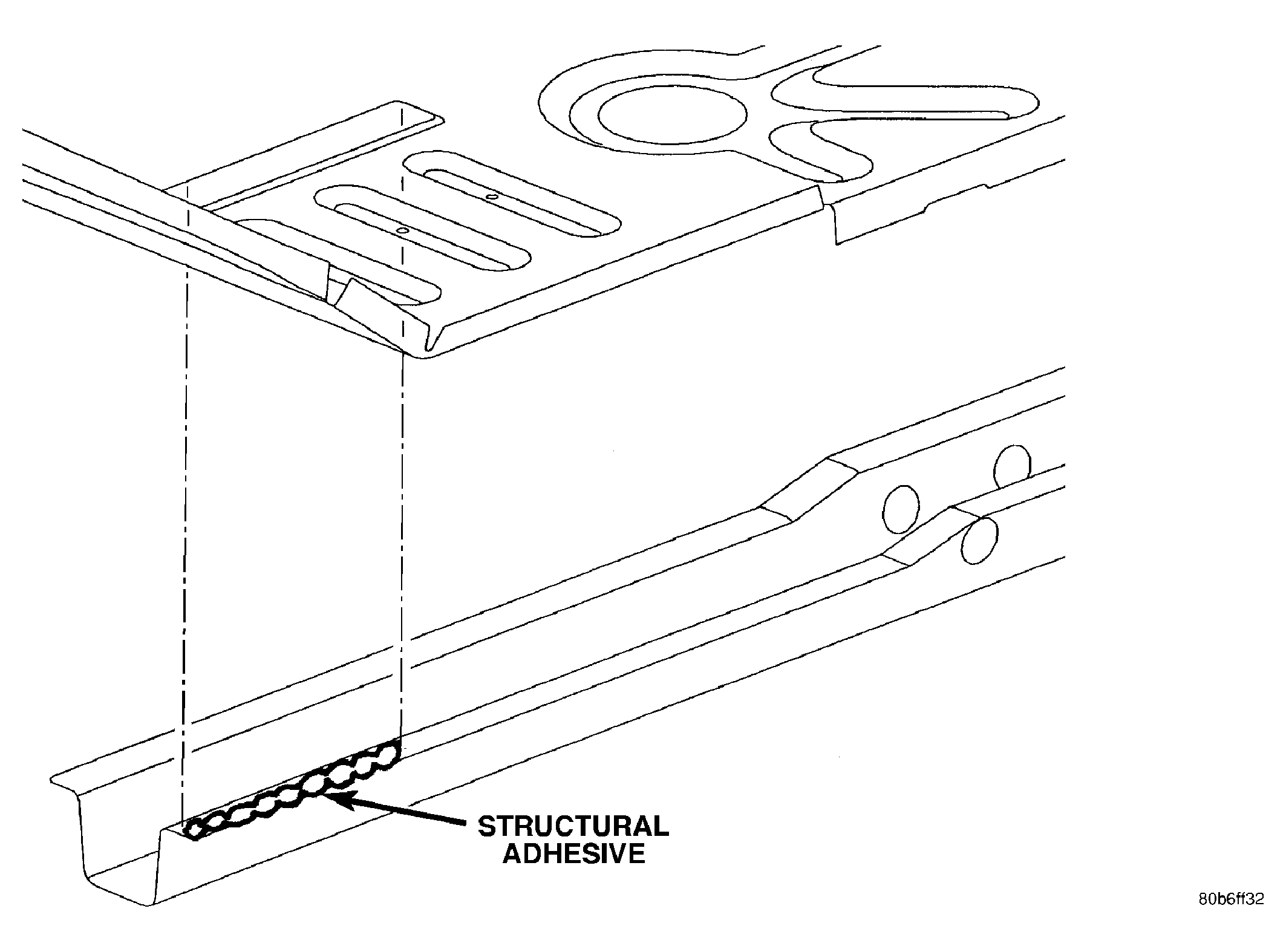

Fig 4: RAIL TO REAR FLOOR PAN

Courtesy of DAIMLERCHRYSLER CORP.

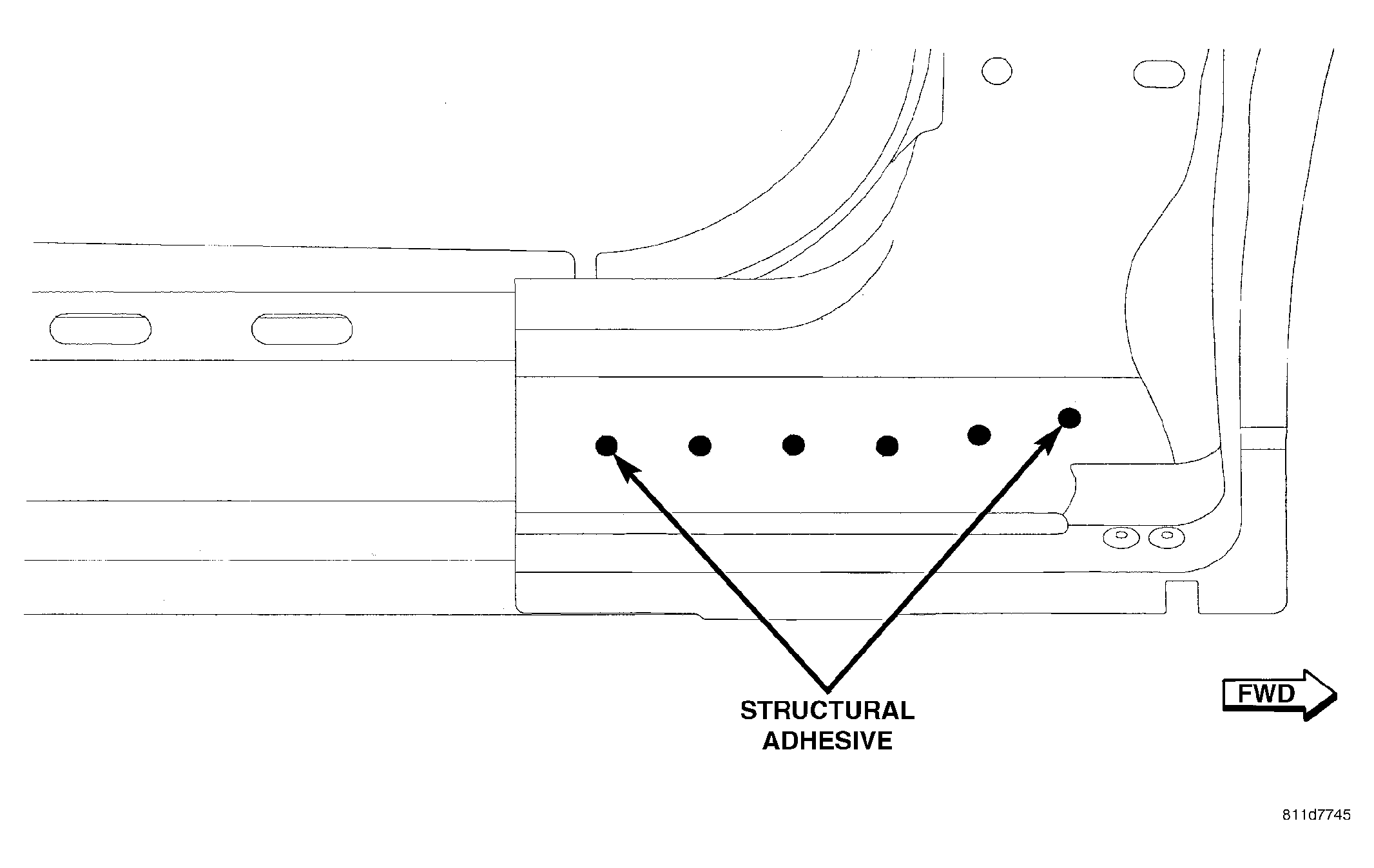

Fig 5: DYNAMIC SIDE IMPACT REINFORCEMENT TO FRONT HINGE PILLAR

Courtesy of DAIMLERCHRYSLER CORP.
