Master Cylinder-RHD: Description

NOTE: A one-piece master/slave cylinder assembly is used on these models. If the master cylinder requires replacement, the master AND slave cylinders must be replaced with a two-piece system.

The RHD clutch master cylinder mounts through the dash panel and to the pedal bracket assembly. The master cylinder consists of a push rod, a piston and cylinder housing, a remote fluid reservoir, an interconnecting hydraulic tube, and an integral slave cylinder. See Fig 1 and Fig 2.

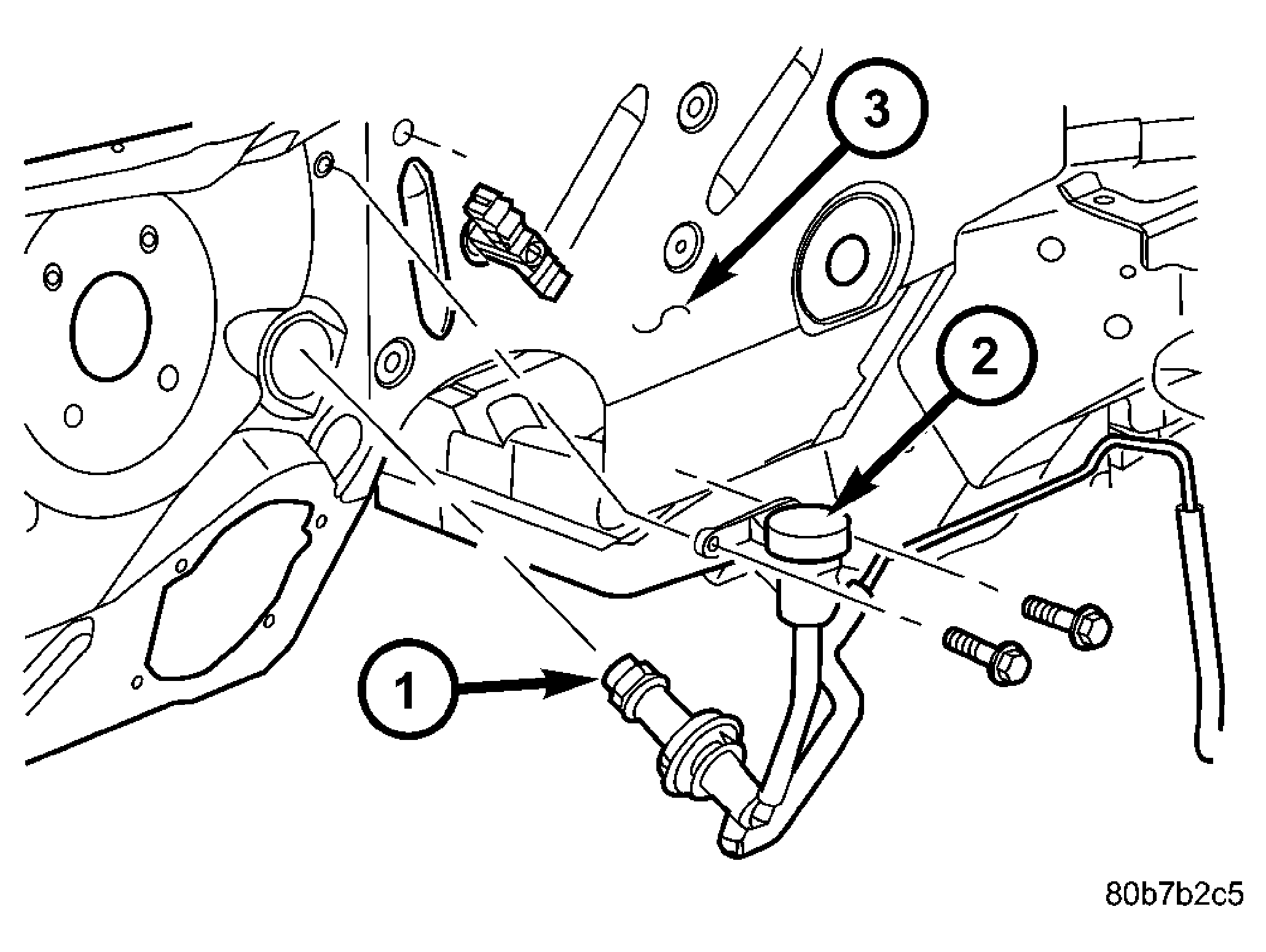

Fig 1: Clutch Master Cylinder-RHD

Courtesy of DAIMLERCHRYSLER CORP.

1 - MASTER CYLINDER

2 - RESERVOIR

3 - DASH PANEL

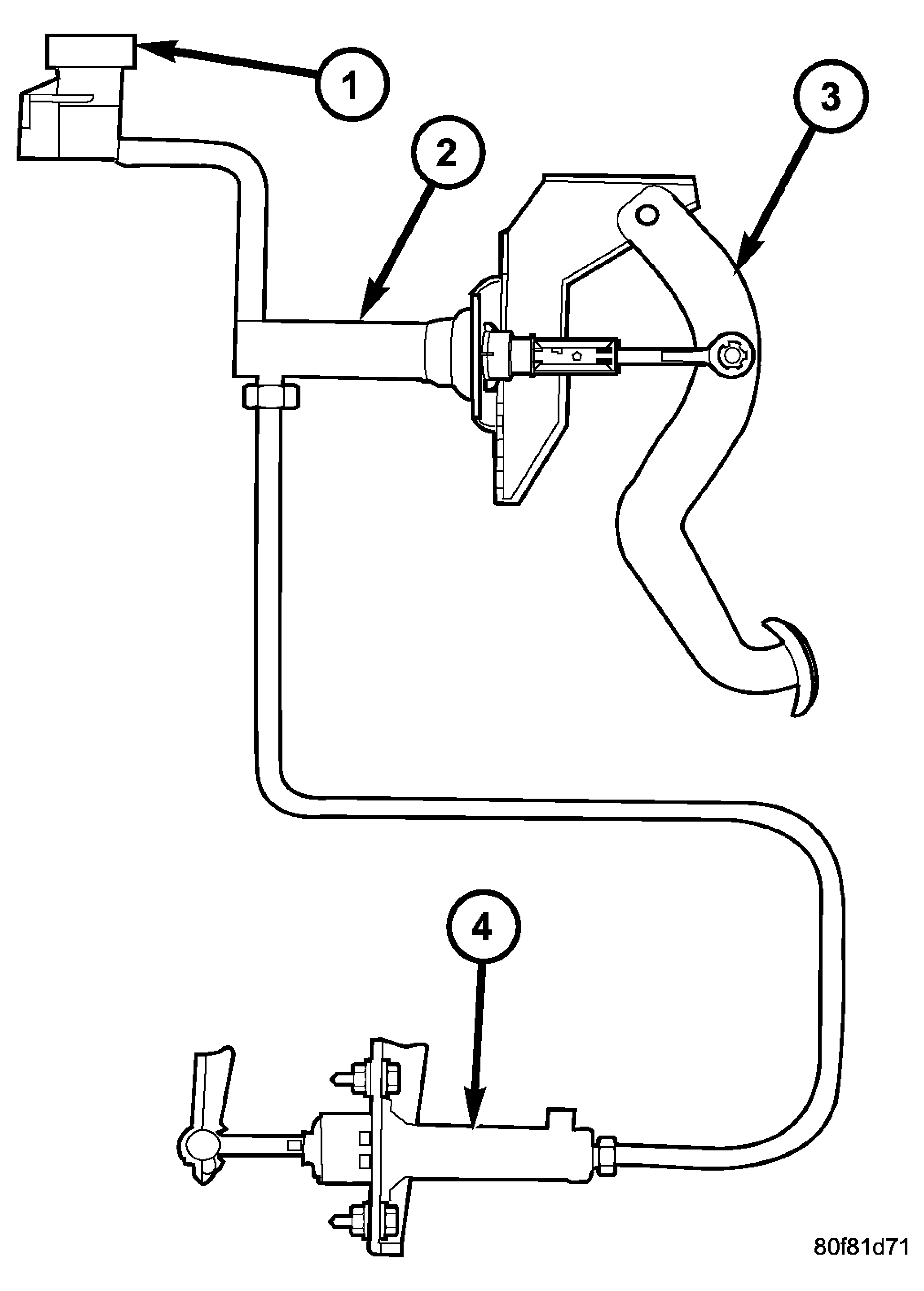

Fig 2: Clutch Hydraulic System - RHD

Courtesy of DAIMLERCHRYSLER CORP.

1 - RESERVOIR

2 - MASTER CYLINDER

3 - PEDAL ASSEMBLY

4 - SLAVE CYLINDER
