Schematic Diagrams: Pl

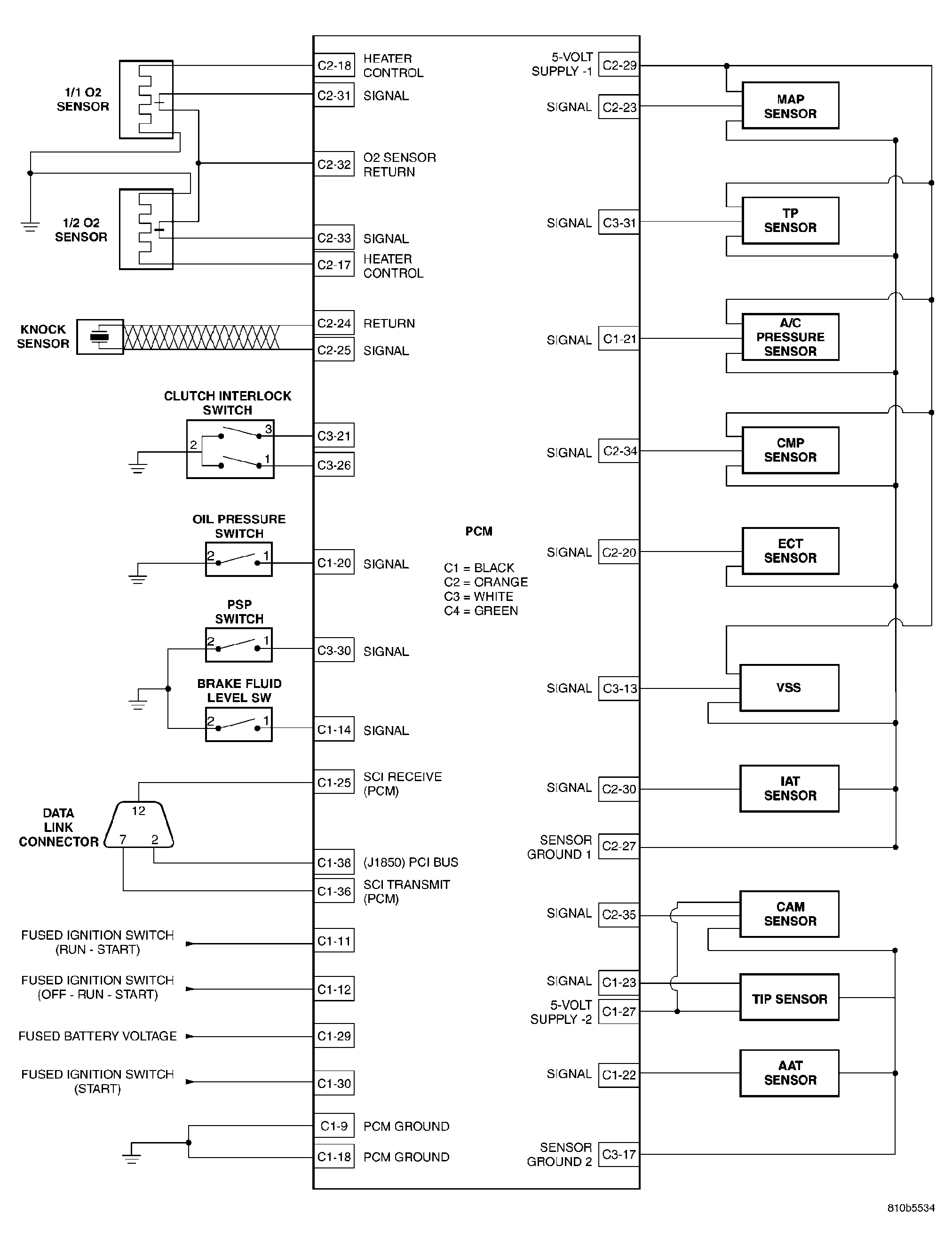

Fig 1: Schematic Diagrams - PL (1 Of 2)

G04549757

Courtesy of DAIMLERCHRYSLER CORP.

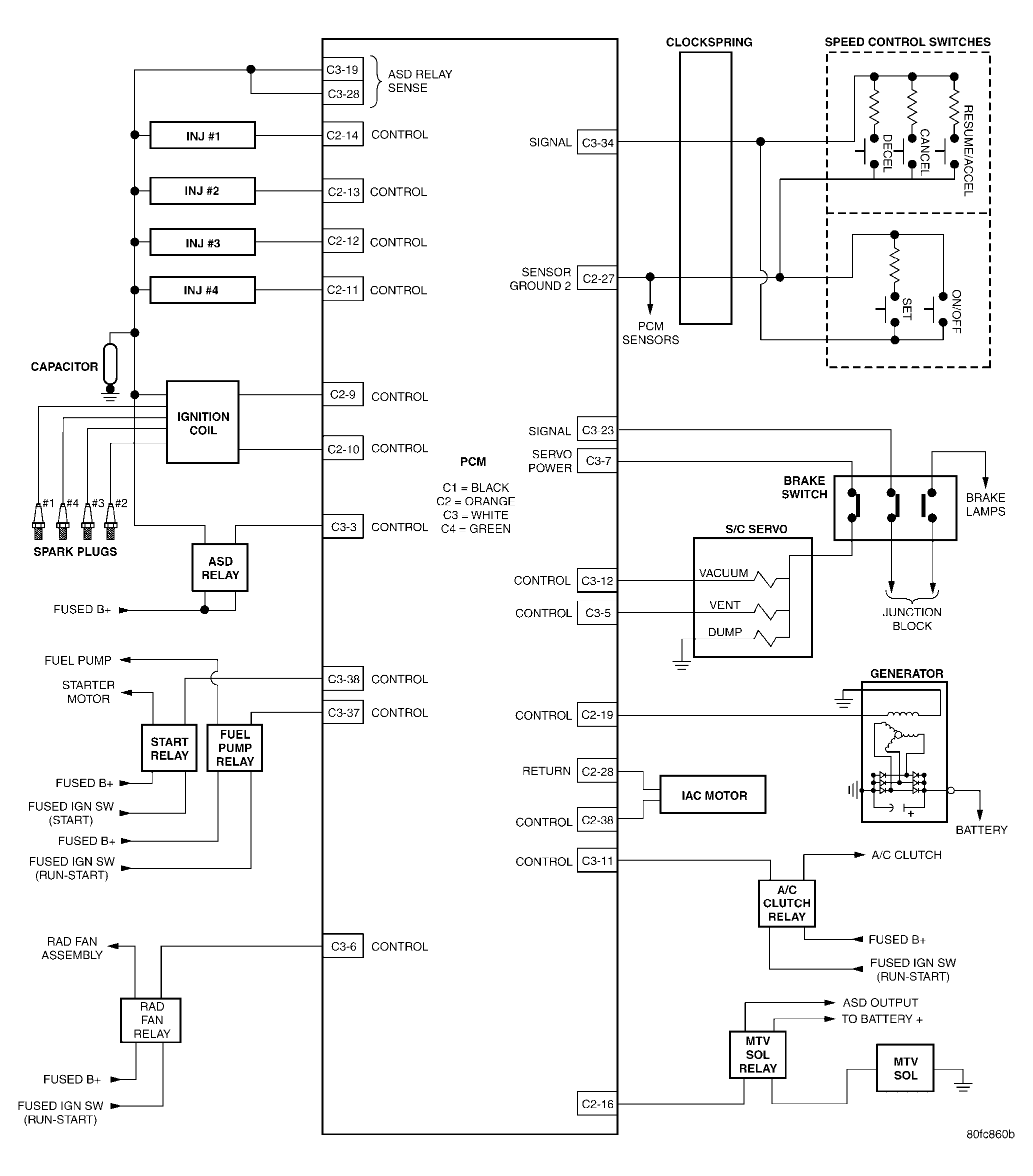

Fig 2: Schematic Diagrams - PL (2 Of 2)

G04549758

Courtesy of DAIMLERCHRYSLER CORP.
