Powertrain Control Module C4 - Black/Green 38 Way

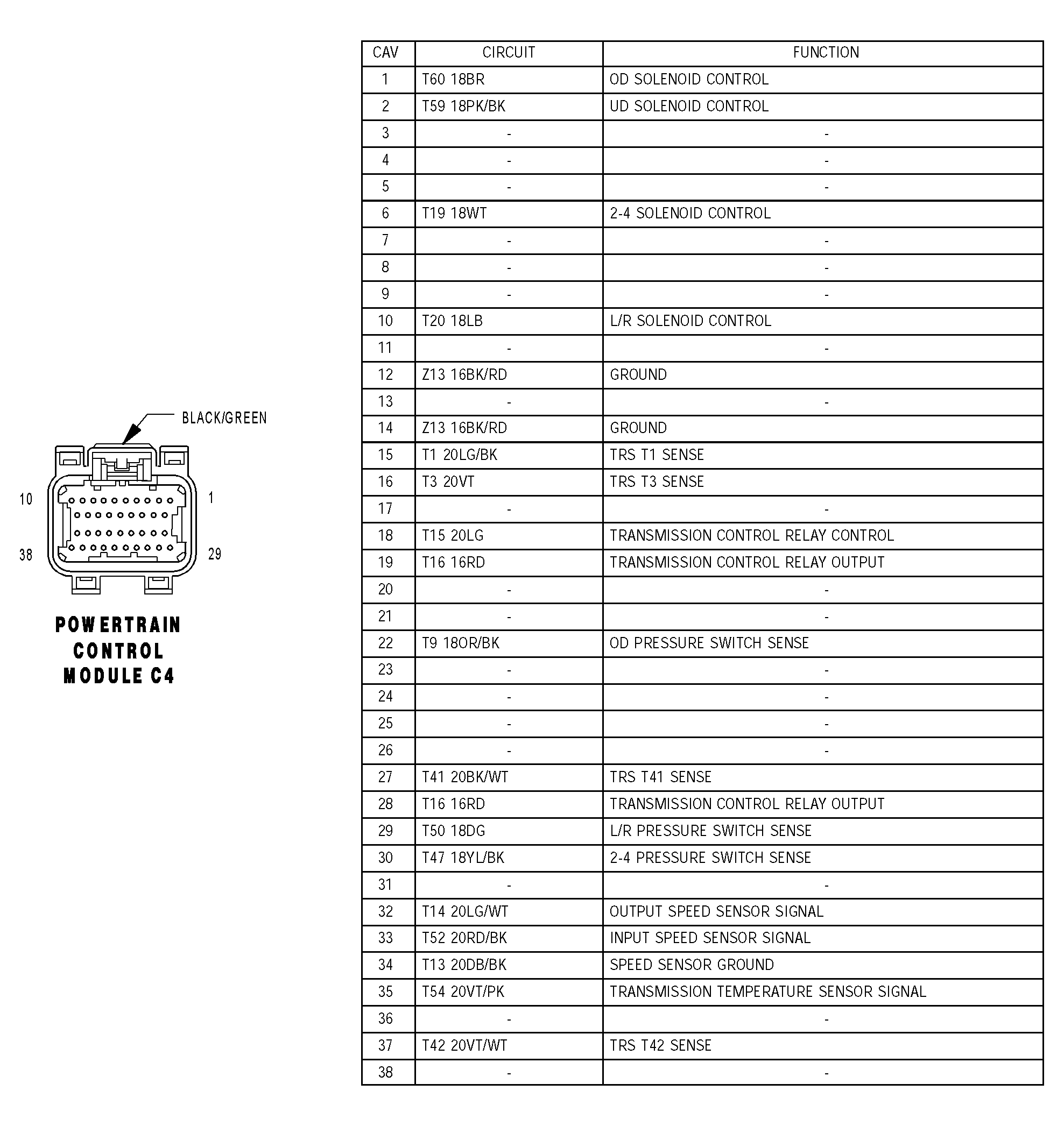

Fig 1: Identifying Powertrain Control Module C4 Connector Pinouts - Black/Green 38 Way

G04549744

Courtesy of DAIMLERCHRYSLER CORP.
