Powertrain Control Module C3 - Black/Natural 38 Way
Powertrain Control Module C3 - Black/Natural 38 Way

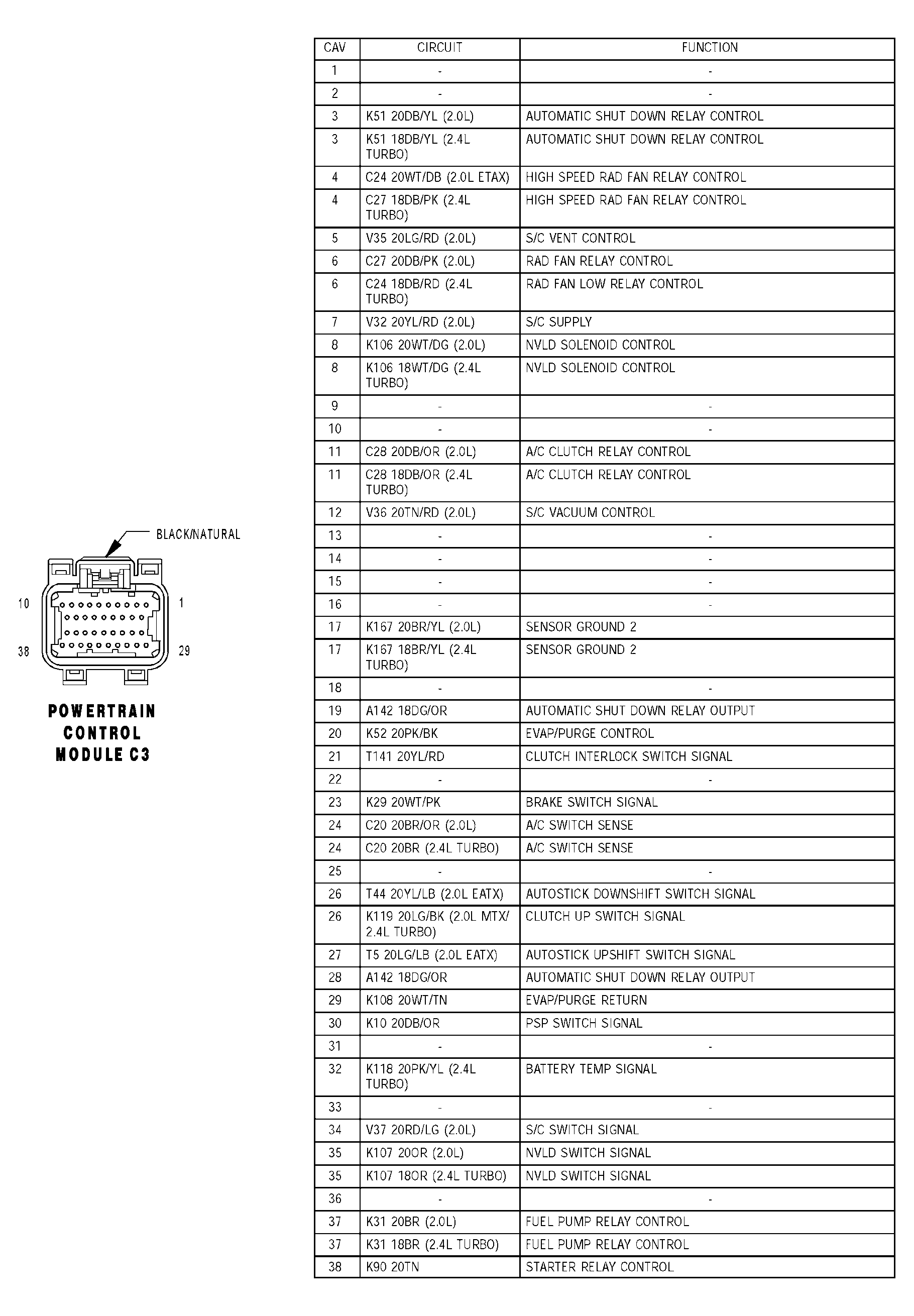

Fig 1: Identifying Powertrain Control Module C3 Connector Pinouts - Black/Natural 38 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
