Installation - 1.6L

Make sure that the rubber insulators are in place both on the top and bottom of the coil bolts.

1. Install coil and insulators. See Fig 1.

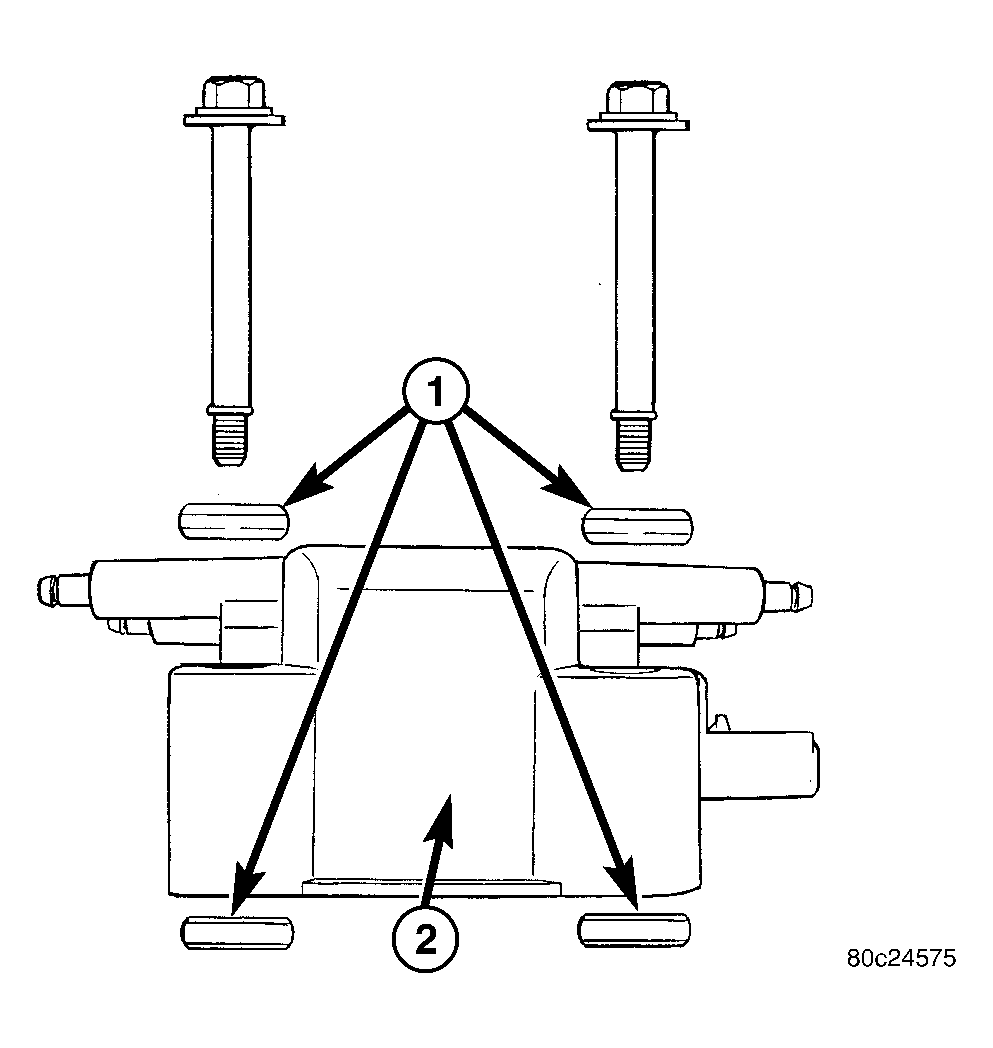

   Fig 1: Rubber Insulators And Coil

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - Rubber Insulators

   2 - Coil

2. Tighten bolts to 12 N.m (105 +/-20 in. lbs.).
3. Install spark plug cables.
4. Connect the negative battery cable.
