Removal - 1.6L

  1. Disconnect the negative battery cable.
  2. Remove the electrical connector at the Manifold Absolute pressure (MAP) sensor. See Fig 1.

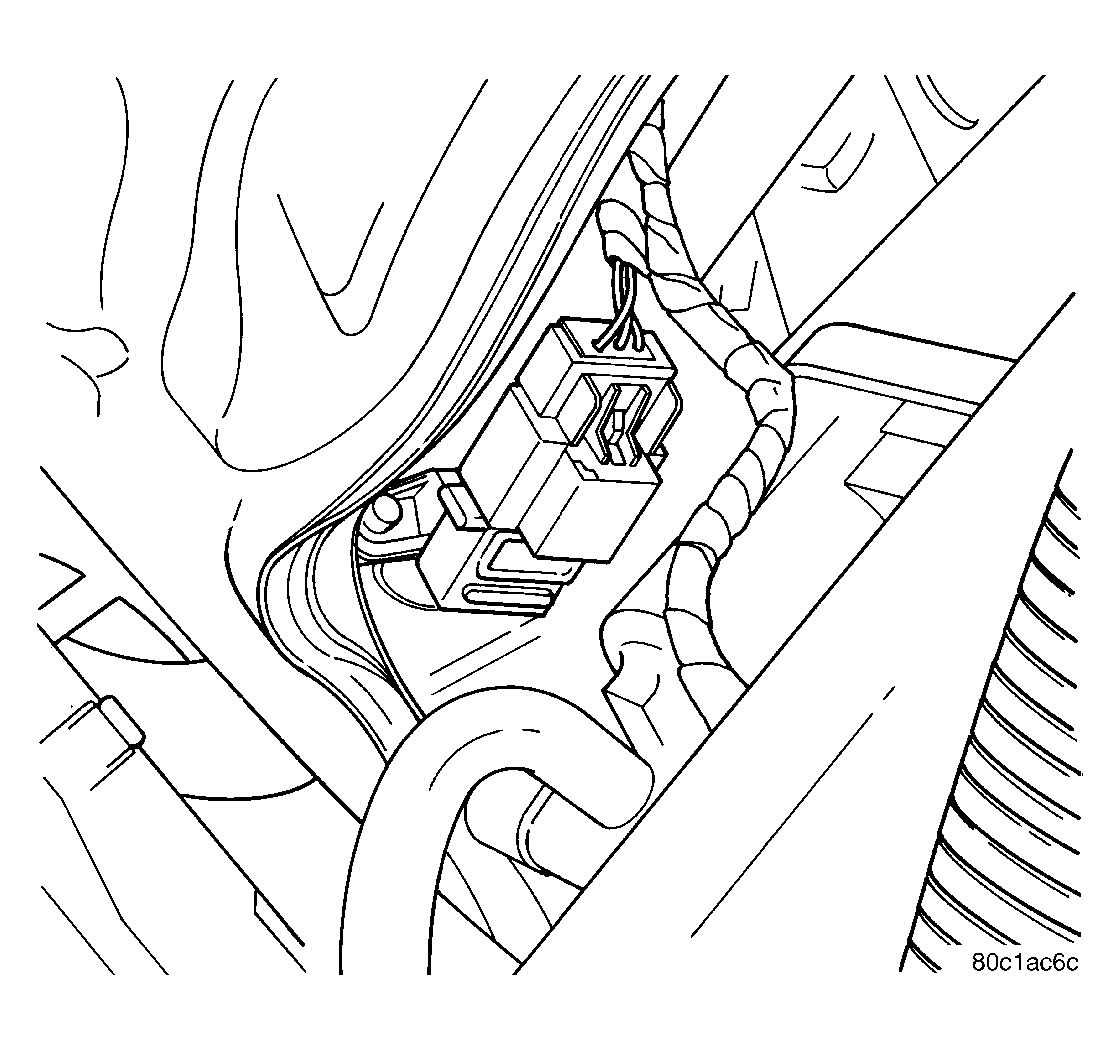

    Fig 1: MAP SENSOR
    GC0019476Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove 2 screws from sensor.
  4. Remove sensor.
