Fuel Injector: Description

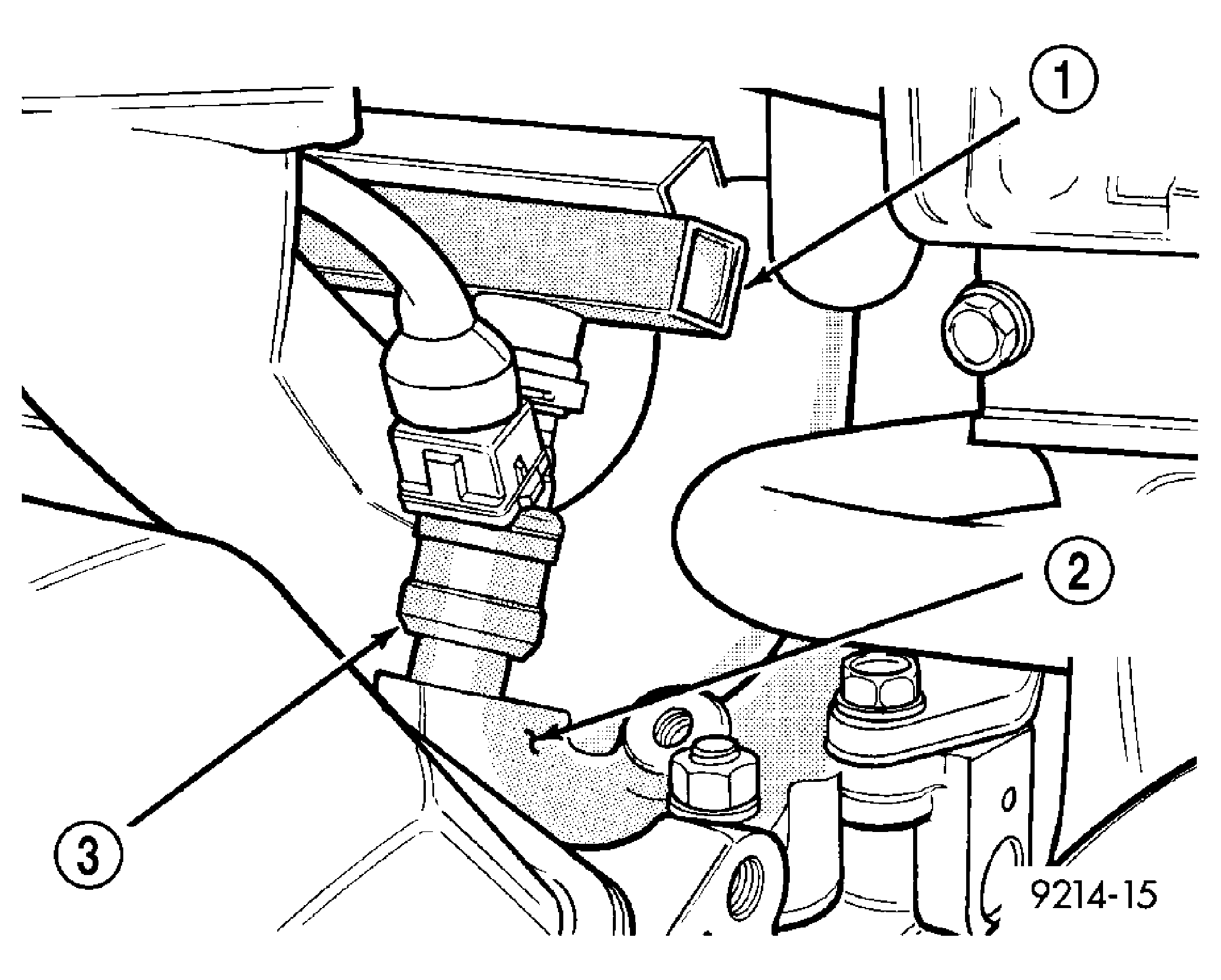

The injectors are positioned in the intake manifold with the nozzle ends directly above the intake valve port. See Fig 1 .
| 1 - FUEL RAIL |
| 2 - INTAKE MANIFOLD |
| 3 - FUEL INJECTORS |
The injectors are positioned in the intake manifold with the nozzle ends directly above the intake valve port. See Fig 1 .
| 1 - FUEL RAIL |
| 2 - INTAKE MANIFOLD |
| 3 - FUEL INJECTORS |
