Installation - 1.6L

  1. Make sure that the manifold is clean. See Fig 1.

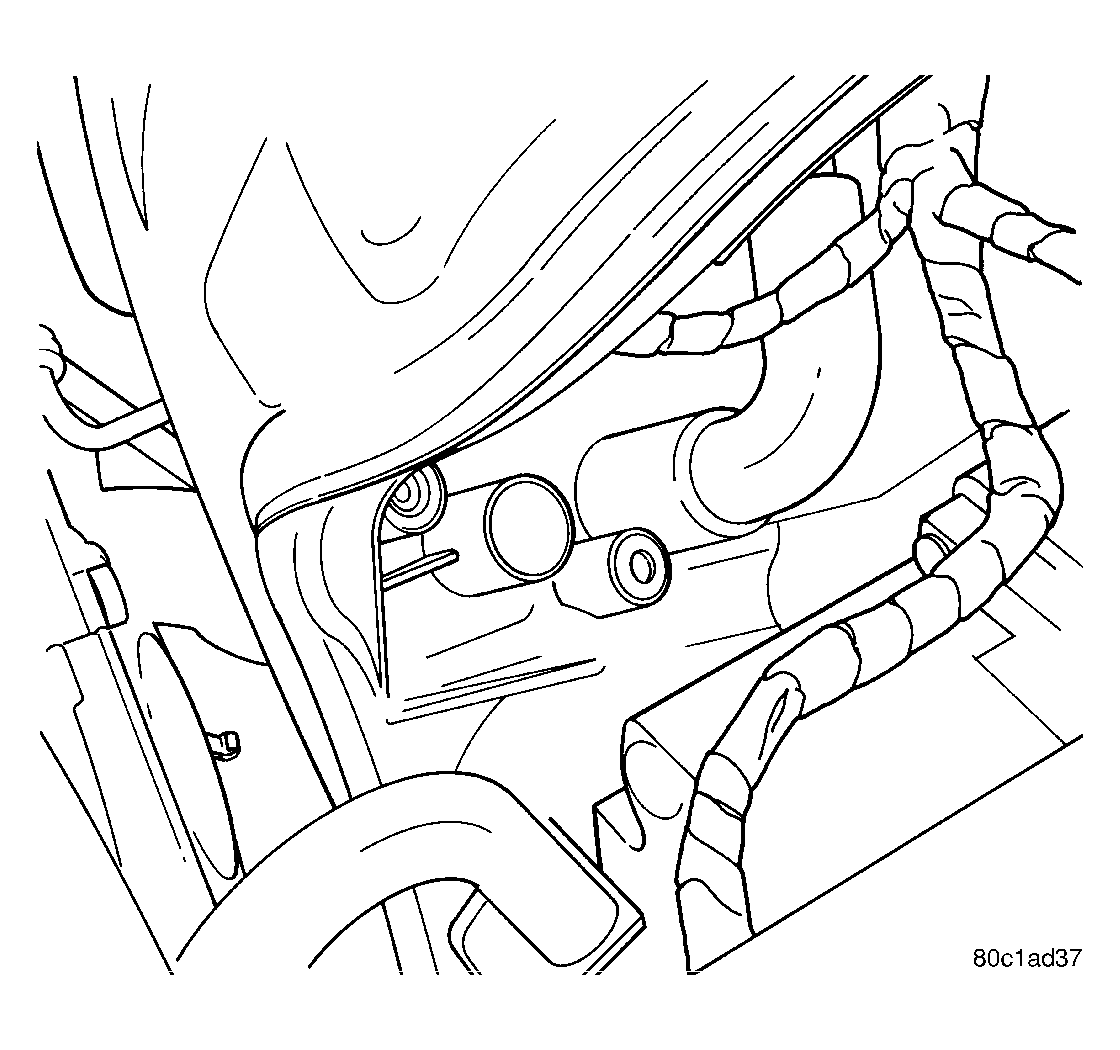

    Fig 1: INTAKE MANIFOLD/MAP SENSOR LOCATION
    GC0019477Courtesy of DAIMLERCHRYSLER CORP.
  2. Install sensor to manifold.
  3. Tighten screws.
  4. Connect the electrical connector to the sensor.
  5. Connect the negative battery cable
