Installation - 2.0L

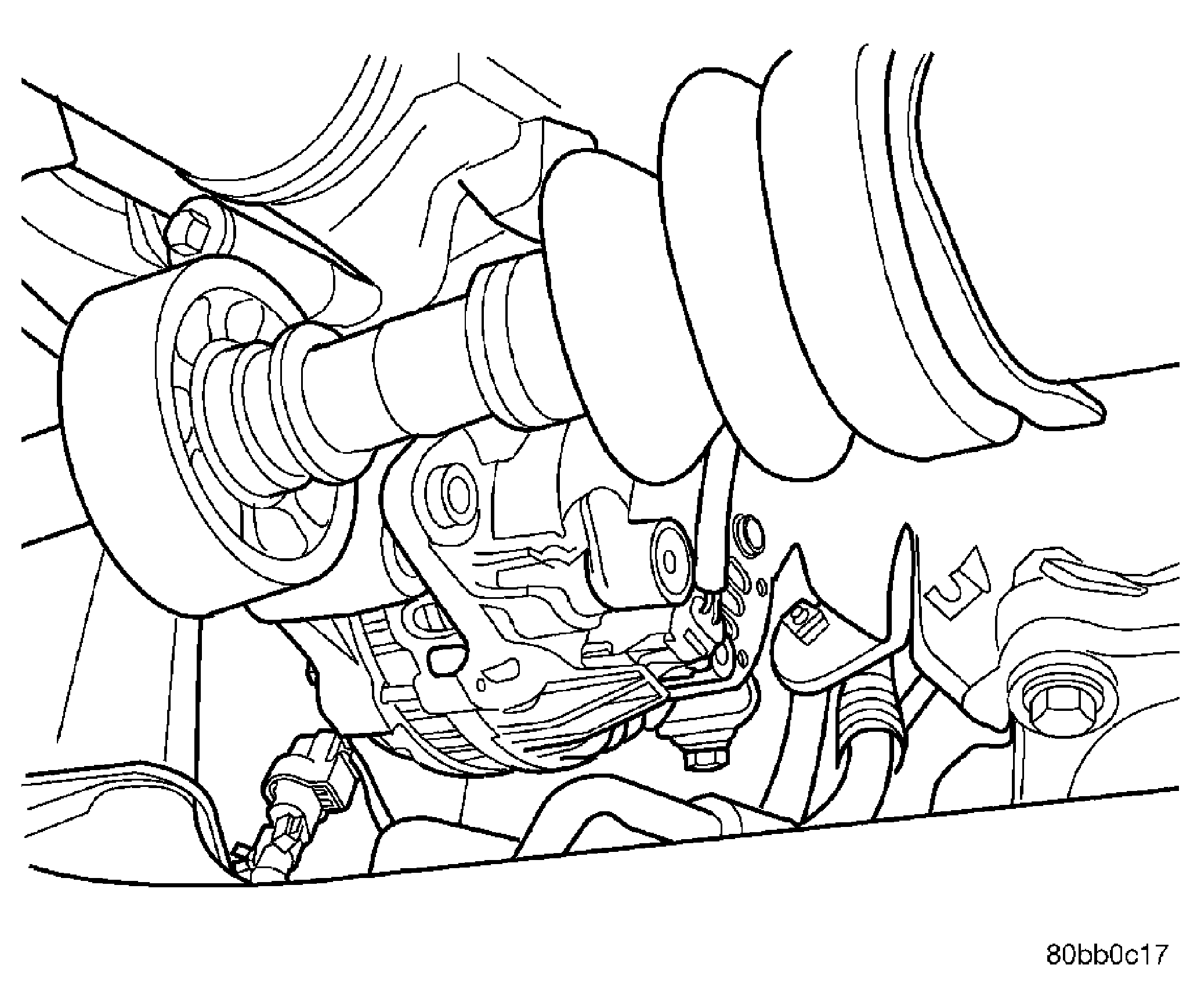

  1. Install generator through wheel well. See Figure.
  2. Install lower pivot bracket and tighten bolts to 54 N.m (40 ft. lbs.).

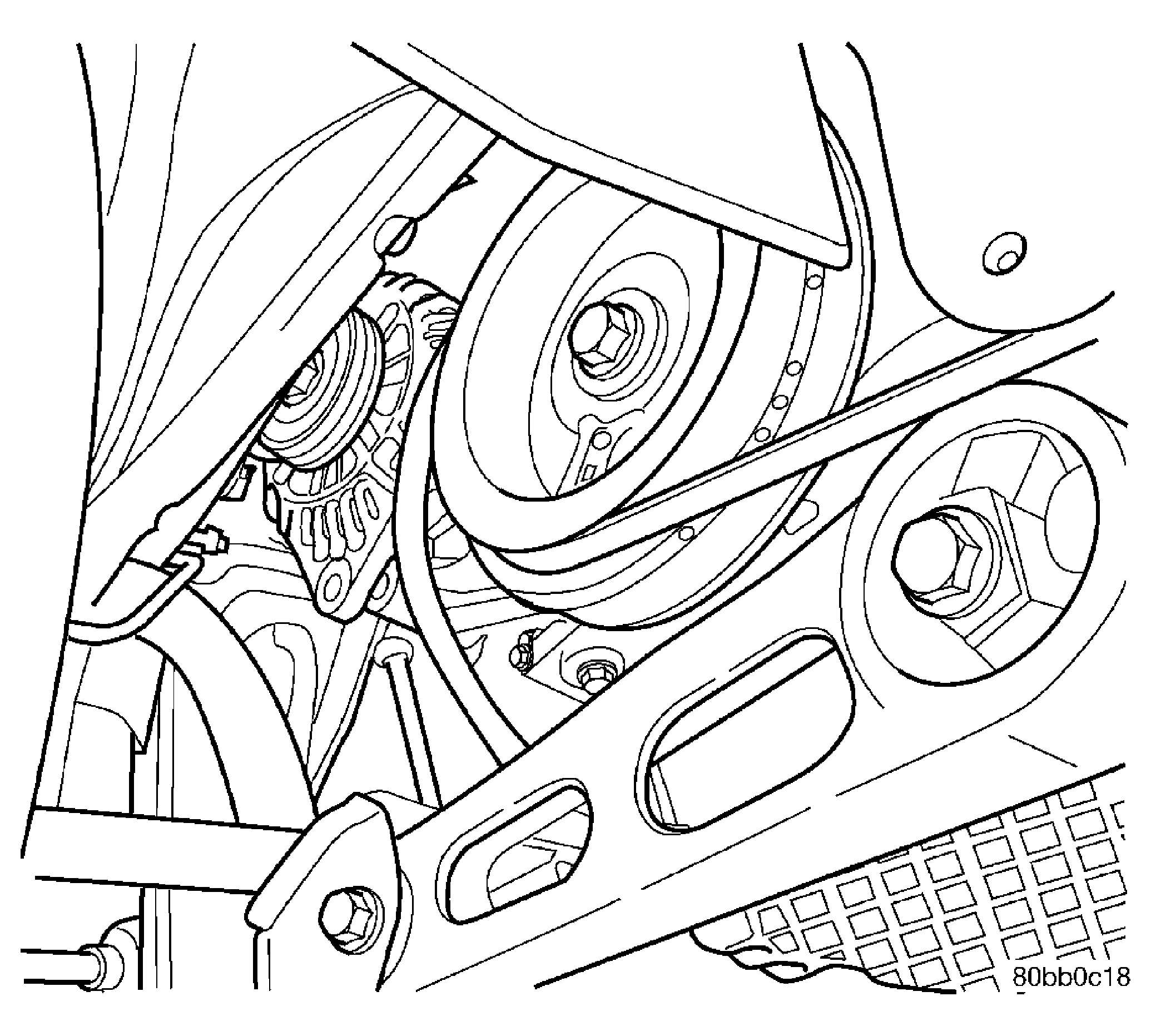

  3. Loose install the upper and lower mounting bolts. See Figure.
  4. Connect the generator field circuit wiring connector. Push the RED  locking tab to lock.
  5. Install the B+ terminal nut and wire.
  6. Install the generator drive belt.
  7. Lower vehicle.
  8. Tension belt. Refer to the Cooling System article for belt tension specification.
  9. Tighten adjustment bolt.
  10. Tighten the jam nut and tighten nut to 54 N.m (40 ft. lbs.).
  11. Raise vehicle and support.
  12. Tighten lower mounting bolt and tighten bolts to 54 N.m (40 ft. lbs.).

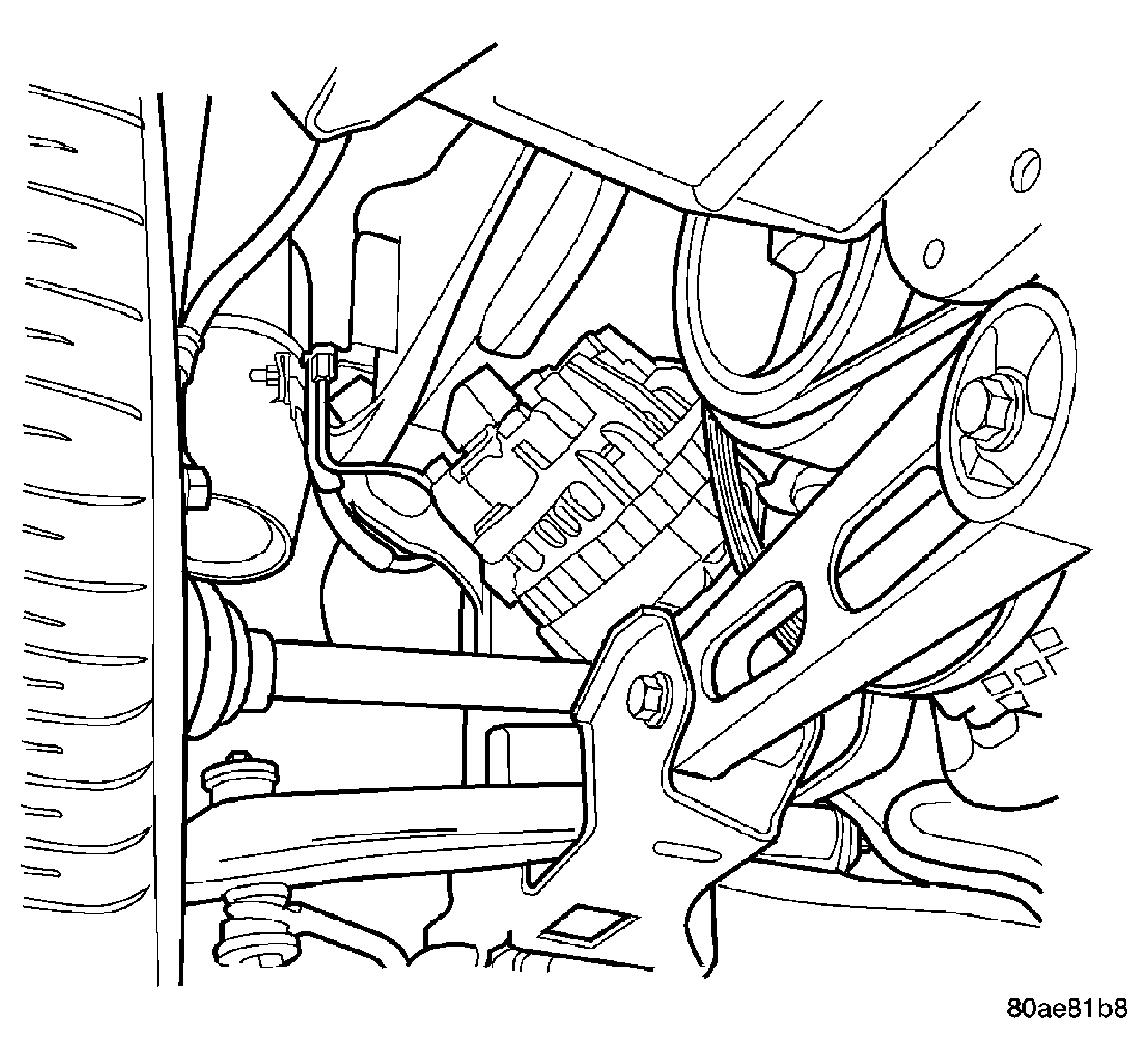

  13. Install splash shield. See Figure.
  14. Lower vehicle.

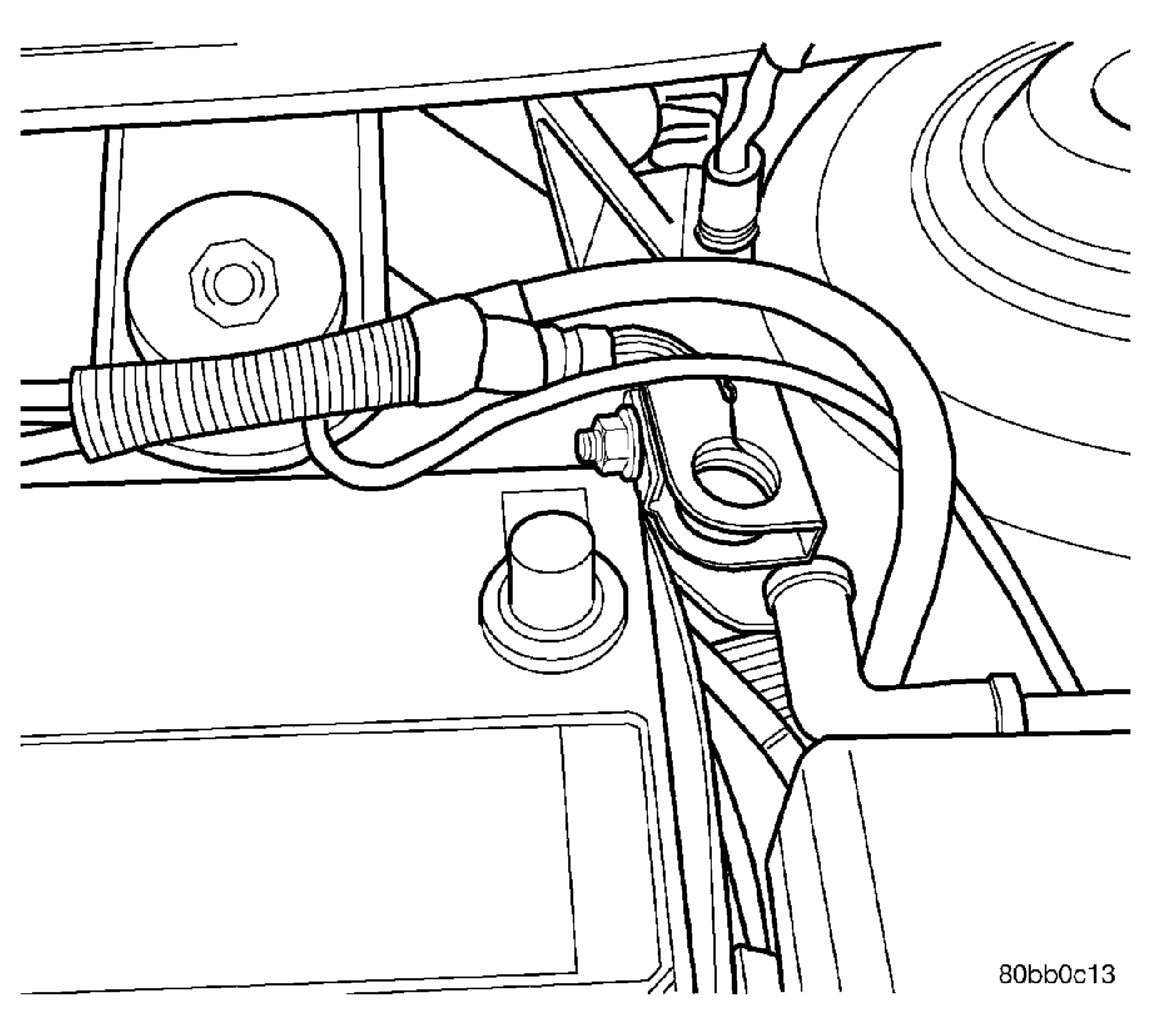

  15. Connect battery cable. See Figure.
