Battery Temperature Sensor: Description

The Battery Temperature sensor is mounting in the side of the battery thermal guard. See Fig 1.

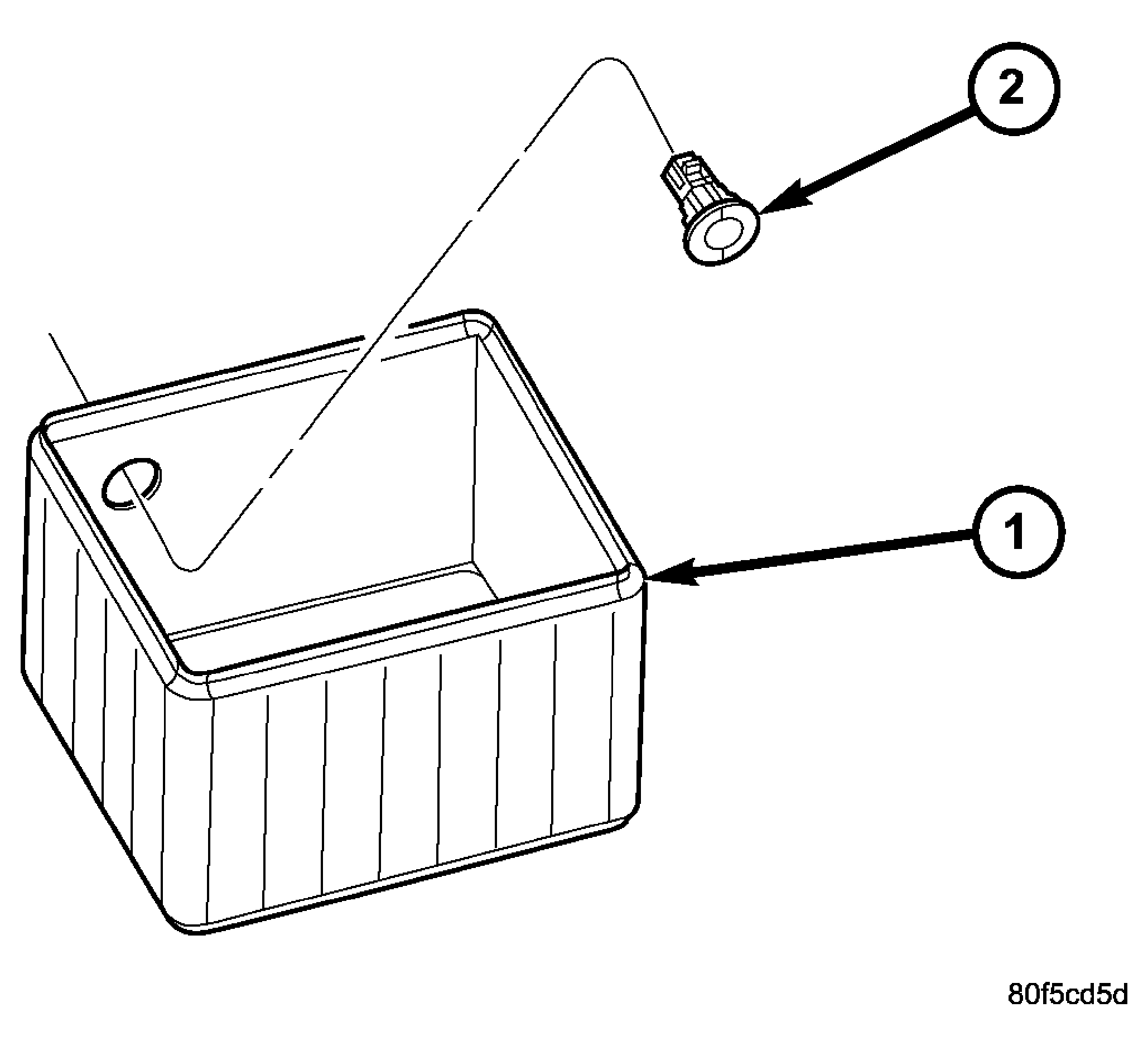

Fig 1: Battery Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.
